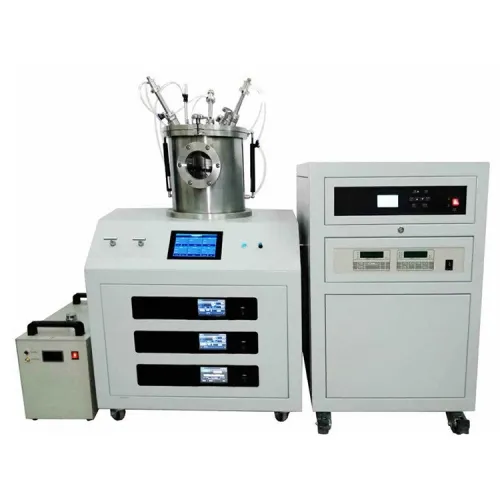

HSKY-600-3HD three-target magnetron sputtering coater

This   equipment is required to be used at the altitude of 1000m or less, the   temperature of 25℃±   15℃, and the   humidity of 55% Rh ± 10% Rh.

1.   Water: The equipment is equipped with a self-circulating chiller (filling   pure water or deionized water)

2.   Electricity: AC220V 50Hz, must have a good ground connection.

3.   Gas: The equipment chamber needs to be filled with argon gas (purity of   99.99% or more). Self-provided argon gas cylinder (with Ø6mm double ferrule   joint) and pressure reducing valve

4.   Workbench: size 650mm × 600mm × 700mm, bearing more than 200kg

5. Ventilation   device: need

1.   Configure three target guns, it can be used for RF coating power supply for   sputter coating of non-conductive targets, or DC power supply for sputter   coating of conductive materials (target guns can be exchanged according to   customer needs).

2.   It can prepare a variety of films, and has a wide range of applications.

3.   It is small in size and easy to operate.

4.   the modular design of the whole machine, vacuum chamber, vacuum pump set,   control power supply split type design, it can be adjusted according to the   actual needs of users.

5.   you can choose the power supply according to your actual needs, it can   control multiple target guns with one power supply, or control one target gun   with multiple power sources

1.   the power supply voltage: 220V 50Hz

2.   total power: 2.5W (excluding vacuum pump)

3.   Working vacuum degree: 10-4Pa

4.   working temperature: RT-500℃,   accuracy ± 1℃(you can   increase the temperature according to actual needs)

5.   the number of target guns: 3

6.   target gun cooling method: water cooling

7.   Target size: Ø2’’, thickness 0.1-5mm (different thickness depending on target   material)

8.   DC sputtering power: 500W (optional)

9.   RF sputtering power: 300W / 500W (optional)

10.   loading sample table: Ø140mm

11.   the sample table speed: adjustable within 1rpm-20rpm

12.   Protective gas: inert gases such as Ar and N2

13.   Intake gas path: mass flow meter controls 2 channels of intake air, 1 flow is   100 SCCM, 1 flow is 200 SCCM
