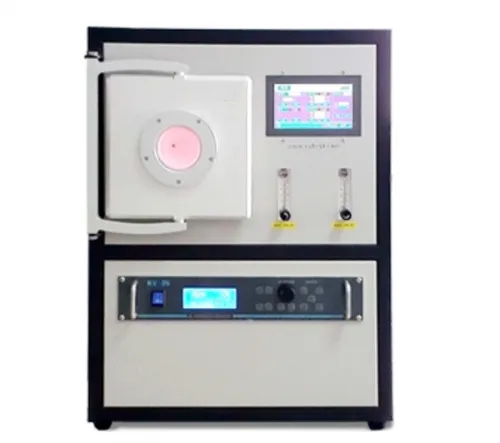

Plasma Cleaning Machine

Model No.HS-P2LProduct Name2L Plasma CleanerDisplayLCD touch controllerWorking voltageAC 220V, 50HzRF Frequency40KHz (13.56MHz for optional)Coupled modeconde
Products Inquiry

Product Details

 Model No. HS-P2L
 Product Name 2L Plasma Cleaner
 Display LCD touch controller
 Working voltage AC 220V, 50Hz
 RF Frequency 40KHz (13.56MHz for optional)
 Coupled mode condenser coupling, without pollute sample
 RF power 200 w
 RF offset < 0.2KHz
 Characteristic impedance 50Ω, automatic matching
 Vacuum degree 10-100Pa, equipped with a mechanical pump
If request high vacuum, please select our turbo pump system
(Optional)
 Gas speed Two way Float Flow Gas Control10-100ml/min, adjustable
 Control PLC Touch Panel Program controlAuto/Manual two mode for optional
 Inner chamber size Stainless Steel Chamber with Φ 100*270mm
If Chamber is not enough for using, we have Φ 150*270mm (capacity: 5L)200* 200*260mm (capacity: 10L)for optional
 Pressure Gauge A simple digital pressure gauge is equipped for reading
If request high precision vacuum reading, please select digital vacuum gauge:
(Optional)
 Cooling way Forced cooling
 Outer dimension 440*390*200mm
 Gross weight 35 kg
 Time of delivery 10 working days after receive the payment
