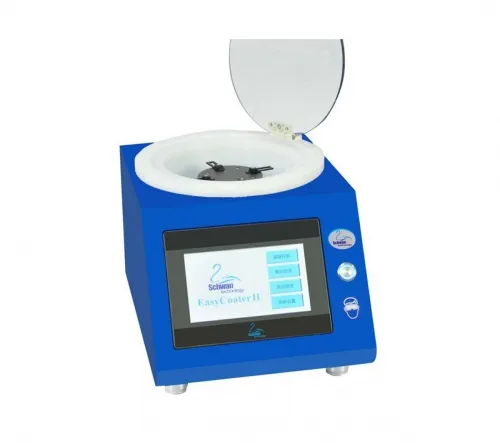

150℃ Programmable Temperature Control Vacuum Spin Coater with alloy chuck HS-IC5000

Features1.200w brushless dc motor,single chip microcomputer control2.High-definition 4.3” display3.Standard 2” alloy heating rotating vacuum chuck, can reach 150℃4.Pre-set single or multi-step coating operate5.Prevent glue blocking design6.PP anti- corrosion chamber, replace

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Features
1.200w brushless dc motor,single chip microcomputer control
2.High-definition 4.3” display
3.Standard 2” alloy heating rotating vacuum chuck, can reach 150℃
4.Pre-set single or multi-step coating operate
5.Prevent glue blocking design
6.PP anti- corrosion chamber, replaceable
7.HDPE vacuum adhesive disc

Model No.	HS-IC5000
Heating plate	Φ50mm
Temperature range	Rm~150℃
Temperature accuracy	±0.5℃
Speed resolution	±1RPM
Rotating speed	100~5000RPM
Accelerated speed	100~3000rpm/s
Single step timing	0.1~3000s
Control	100 sets programmable control,100 steps
Motor power	Brushless DC Motor 200w
Heating power	150W
Working voltage	AC 220V, 50Hz,5A
