Product Details

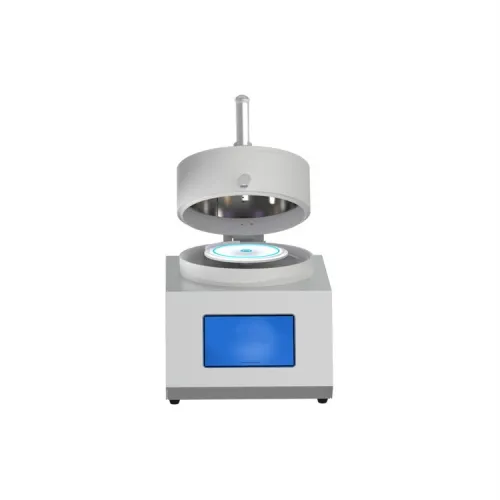

HS-SP8-UV spin coater uses the centrifugal force generated by high-speed rotation to coat the film material. This model is equipped with an ultraviolet light source, which can realize the drying function of special film materials.
This machine adopts precision DC brushless motor, which has fast starting speed and stable speed, which ensures the consistency and uniformity of coating thickness.
The sample is fixed by vacuum adsorption, which is easy to operate and can be taken and placed freely. Suction cups of various sizes can be selected according to the sample size.Also it is simple and convenient to replace the vacuum chuck.

Technical parameters:

Model	HS-SP8-UV
Maximum speed	10000 RPM
Speed resolution	1 RPM
Maximum rotation time	3000 S
Rotation time resolution	1 S
Maximum acceleration	8000RPM/S
UV wavelength	365nm
Sample size	≤8inches
Size	290mm(W)x360mm(D)x370mm(H)
Weight	20kg
Power input	AC200-230V，600W
Vacuum input requirements	0.06-0.09Mpa, vacuum flow minimum 15L/min or more
Vacuum interface	φ8mm quick screw interface
Working gas	Non-corrosive gases such as nitrogen, argon, oxygen, etc.
