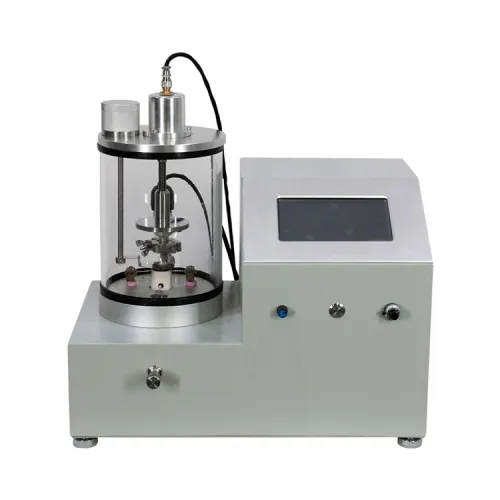

Small evaporation coating machine HS-EVP180G-LV

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Small evaporation coating machine has a high precision temperature control system, using the cycle heating method, can stably evaporate metal and some organic matter. Using high purity quartz cavity as vacuum chamber, coating process can be seen completely. The instrument is equipped with bipolar rotary vane vacuum pump, which can quickly reach the vacuum degree of 1.0E-1pa and meet the vacuum environment required by most evaporation and coating experiments. This instrument is suitable for evaporation and coating most of the metal and some organic materials film. It has compact structure and small size, which is a cost-effective laboratory coating equipment.
Small evaporation coating machine applications:
Evaporation and coating most of the metal and part of the organic material film.

Small evaporation coating machine techinical parameters:

Small evaporation coating machine
Sample Stage	Size	φ80mm	Distance to the evaporation source	20mm~50mm adjustable
DC sputtering head	evaporation source	Tungsten wire basket	Highest Temperature	1700℃
DC sputtering head	Thermal couple	S type Thermal couple
Vacuum Chamber	Chamber Size	φ180mm×100mm	Watch Window	Omnidirectional transparency
Vacuum Chamber	Chamber Material	High purity quartz	opening mode	Top cover removable
Vacuum System	Mechanical Pump	Rotary vane pump	Pumping connector	KF16
	vacuum measurement	resistance gauge	Air exhaust connector	KF16
	Ultimate vacuum	1.0E-1Pa	Power Supply	AC;220V 50/60Hz
	Pumping rate	Rotary vane pump：1.1L/S
Other	Supply Voltage	AC220V,50Hz	Overall size	360mm×300mm×470mm
Other	Total Power	800w	Total Weight	15kg
