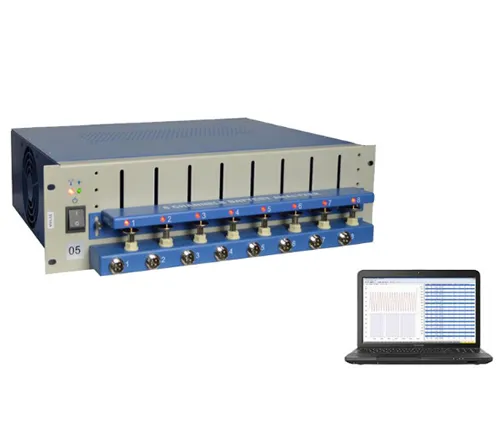

8 Channel Battery Analyzer with Laptop & Software

Basic InfoModel NO.: HS-BTS-5V10mATest Region: CurrentCustomized: CustomizedRecord Frequency: 1HzInterface: R232Transport Package: Wooden BoxOrigin: Zhengzhou, ChinaType: Batteries Monomer TesterApplication: Lithium-ion BatteryNoise:

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Basic Info
Model NO.: HS-BTS-5V10mA
Test Region: Current
Customized: Customized
Record Frequency: 1Hz
Interface: R232
Transport Package: Wooden Box
Origin: Zhengzhou, China
Type: Batteries Monomer Tester
Application: Lithium-ion Battery
Noise: <85dB
Current Response Time: 20 Ms
Trademark: CY
Specification: 5V10mA
HS Code: 85141090

Product Description
BTS-5V10mA Battery Testing Equipment
Introduction
The equipment is eight-channel battery analyzer suitable for most applications in battery testing fields such as electrode materials research, battery performance & cycle test, small-scale battery formation, capacity grading, battery pack testing and etc.

Project index		Parameter index
Input Power		AC 220V ±10% / 50Hz
resolution		AD:15bit;DA:12bit
Input Resistance		≥1MΩ
Input Power		747mW
Channel Features		Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode		Independent Control
Voltage	Per Channel Voltage Range	Charging:10mV~5V Discharging: 1.5V-05V
	Accuracy	± 0.1% of FS
	Stability	± 0.1% of FS
Current	Per Channel Current Range	0.02mA~10mA
	Accuracy	± 0.1% of FS
	Stability	± 0.1% of FS
Power	Per Channel Output Power	50mW
	Stability	± 0.2% of FS
Time	Current Response Time	20ms (0-Full Range)
	Step Time Range	1s≤(365*24 )hour/step, Time Form Support 00:00:00(h,min:s,ms)
Data Recording	Record Condition	Time△t:1S-60000S
		Voltage△U: 10mV-5V
		Current△I: 0.02mA-10mA
	Record Frequency	1Hz
Charge	Charge Mode	Constant Current Charge,Constant Voltage Charge, Constant Current and Constant Voltage Charge
	End Condition	Voltage,Current,Relative Time,Capacity
Discharge	Discharge Mode	CCD,CPD
	End Condition	Voltage,Current,Relative Time,Capacity,
Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	63
	Nested Loop	Nested loop Function,Max Support 3 Layers
Protection	Software Protection	Power-down Data Protection
		Off-line Testing Function
		Setting Protection Condition,Setting Parameter:Low Voltage limit,Upper Voltage limit,Low Current limit,Upper Current limit,Delay Time
	Hardware Protection	Additional Anti-reverse Protection Model
Voltage and Current Testing Sample		4-wire connecting
Noise		<85dB
Database		MySQL Database
A Means of Communication of Upper Machine		TCP/IP Protocol
Data Output		EXCEL2003/2010,TXT
Communication Interface		R232
Per Unit Main Channels No.		8
Dimensions		3U,482378130(mm)

Equipment Working Environment

Project index	Parameter index
Working Temperature Range	-10ºC~40ºC
Storage Temperature Range	-10ºC~50ºC
Working Environment Relative Humidity Range	=<70% RH
Storage Environment Relative Humidity Range	=< 80% RH
