8 Channel Battery Analyzer (0.25 -300 Ma, Upto 5V W/ Temperature Measurement and Laptop & Software

Basic InfoModel NO.: HS-BST8-300-CSTTest Region: CurrentCustomized: Non-CustomizedTrademark: CYKYSpecification: 8 Channel Battery AnalyzerType: 8 Channel Battery AnalyzerApplication: Lithium-ion BatteryItem Name: 8 Channel Battery AnalyzerTransport Package: Wooden CaseOrigin: Chi

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Basic Info
Model NO.: HS-BST8-300-CST
Test Region: Current
Customized: Non-Customized
Trademark: CYKY
Specification: 8 Channel Battery Analyzer
Type: 8 Channel Battery Analyzer
Application: Lithium-ion Battery
Item Name: 8 Channel Battery Analyzer
Transport Package: Wooden Case
Origin: China

Product Description

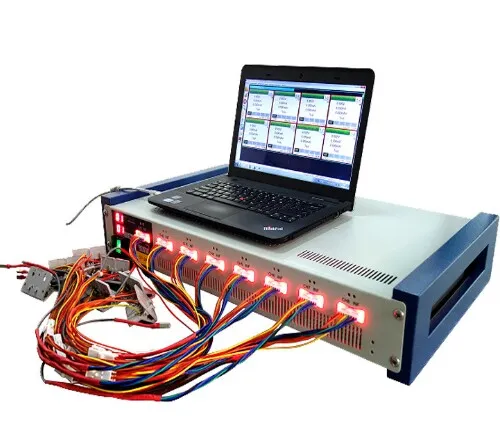

8 Channel Battery Analyzer (0.25 -300 mA, upto 5V w/ Temperature Measurement and Laptop & Software
Description of the 8 channel battery analyzer:BST8-300-CST is an eight-channel battery analyzer for most applications in battery testing fields such as electrode materials research, battery performance & cycle test, small-scale battery formation, capacity grading, battery pack testing and etc. The purchase comes with a brand new laptop with Microsoft Windows with 30 days free trial Microsoft Excel and the latest version of controller software installed and calibrated for immediate use.
FEATURES
●Range: 0.25 mA - 300mA programmable
●Accuracy: ±(0.05% RD + 0.05% FS)
●Resolution: 0.1mA

Voltage	●Eight independent programmable channels. Each channel can work under different modes and functions independently ●Working modes Include: ●The software is included to set various working modes for evaluating cell capacity and lifecycle for all types of rechargeable batteries ●Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc. ●With real-time monitoring windows and integrated graph/data windows, the testing process can be observed more directly and efficiently. ●During the test, the software will provide instructions and warnings for assistance. ●MS Excel 2013 30 days free trial is pre-installed for the Excel data file output.
Test Reports and Curves for Analysis	●Each channel has an N type thermocouple to monitor the temperature of the batteries during the charging/discharging cycles. Please see Pic.1 in below for details. ●8 alligator clips with cable for universal connecting ●8 banana type jacks with cable for connection to 8 channel Coin Cell Testing Board (note: the board is sold separately
Laptop Computer	●CE Certified
Warranty	Two years limited warranty with lifetime support for the battery analyzer. (Note: our company does not carry warranty for the laptop. In case service is needed for the laptops, please contact laptop manufacturer directly for warranty/non-warranty service.)
Application Notes	●Multiple battery analyzers with one laptop configuration and purchase possible. $300 will be deducted from the sales price if one analyzer is purchased without the basic laptop. ●Up to 20 battery analyzers can be controlled via one computer & software.
Net Weight	30 Kg (65 lbs)
Shipping Weight	37 Kg (80 lbs) / Analyzer only: 70lbs
Shipping Dimensions	Analyzer: 33"(L) x 21"(W) x 9"(H)
