Automatic Film Coater with 12"W X 24"L Glass Bed and 250mm Adjustable Doctor Blade

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Basic Info
Model NO.: HS-MSK-AFA-II
Structure: Desktop
Certification: CE, TUV
Type: Heating Type
Speed: 10 - 100 mm/Sec Variable
Coating Dimension: 250mm(W) X 550mm(L)
Transport Package: Wooden Box
Origin: Zhengzhou, China
Customized: Customized
Material: Aluminum
Application: School, Lab
Power: 350W
Platform: 600X300X20mm
Trademark: CY
Specification: stroke length 10-550mm
HS Code: 85141090

Product Description

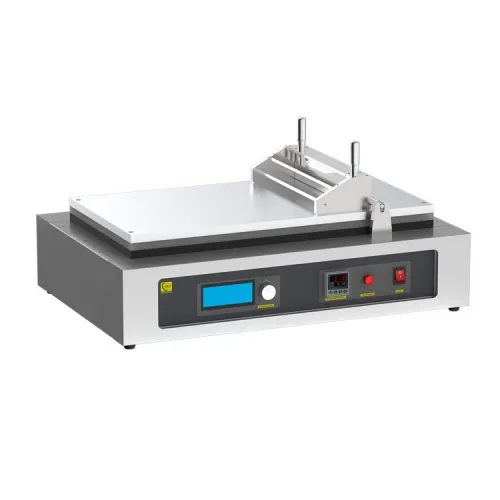

Automatic Film Coater with 12"W x 24"L Glass Bed and 250mm Adjustable Doctor Blade - MSK-AFA-II
Introduction
MSK-AFA-II is a CE Certified and UL/CSA ready-to-pass Large Automatic Film Coater designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed thickness applicators. It has a unique driving system to produce a smooth coating on all types of materials. One micrometer adjustable applicator is included for immediate use.

Specification

Working Voltage	INPUT: 24VDC A UL/CSA listed 100-240VAC IN - 24VDC OUT power adapter is included.
Max. Power Consumption	350W
Traverse Speed	10 - 100 mm/sec variable Accuracy: 10mm/sec
Stroke Length	10 - 550 mm adjustable by using Adjustable Position Switch
Max. Coating Dimensions	250mm(W) x 550mm(L)
Platform	600mm L x 300mm width x 20mm Thick flat tempered glass plate One clip is included to keep the substrate stable during coating
Film Applicator	One 250 mm width Micrometer Adjustable Film Applicator is included, with adjustable thickness from 0.01 mm - 5 mm Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating Note:Thinnest film can be achieved is > 10 micron
Product Dimensions	805mm(L) x 430mm(W) x 223mm(H)
Certification	CE certified
Warranty	One Year limited warranty with lifetime support

Factory
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,CVD system and customized lab equipment.Welcome you come to visit us.
