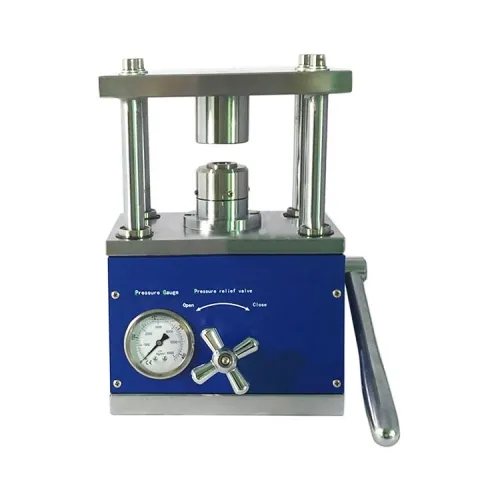

Hydraulic sealing machine for coin cell

1. Precise mold design guarantees accurate and reliable sealing;

2. Sturdy steel structure design, stable and safe to use;

3. Specially designed hydraulic structure, saving effort

4. Equipped with a safety oil valve, which can adjust the pressure as required, and at the same time, the upper limit of the pressure can be set to prevent the damage caused by excessive pressure caused by misoperation.

5. Embedded pressure gauge to observe and accurately control the sealing pressure;

6. CR20 series seals can be used universally, CR24 series and CR1620 can be sealed only by replacing some mold accessories;

7. Small volume, quick and convenient operation, can be put into the glove box for operation;

8. Beautiful appearance and easy maintenance;

1. Hand rocker operating force is less than 5.5kg;

2. Made from Japan imported mold material;

3. Structural material: alloy aluminum and high-strength chrome steel, the surface will never rust after environmental protection electroplating treatment;

4. Dimensions: 232mm x 165mm x 320mm;

5. Weight: 25kg;
