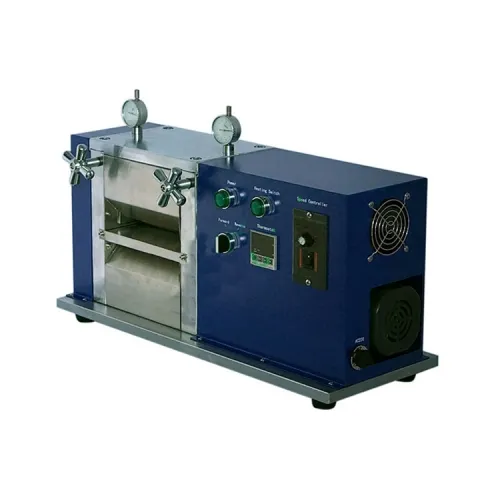

Electric Horizontal Rolling Press with Variable Speed

Product introductionHS-DG100W Electric Horizontal Rolling Press is mainly suitable for electric rolling of battery materials in the laboratory, a small amount of precious metals such as gold and silver, and non-ferrous materials such as copper and aluminum. The rolling thickne

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Product introduction	HS-DG100W Electric Horizontal Rolling Press is mainly suitable for electric rolling of battery materials in the laboratory, a small amount of precious metals such as gold and silver, and non-ferrous materials such as copper and aluminum. The rolling thickness can be adjusted and the operation is simple. It is especially suitable for thinning and increasing the density of lithium battery plates of clean energy materials.
Main features	* Adjustable tablet thickness and speed, easy to use * The motor can rotate forward and backward, and it is convenient to return the material when it finds a problem during operation. * Adopt gear rotation to achieve roller pressing.
Technical parameters	* Roller diameter: 2 ~ Φ96mm * Roller surface hardness: above HRC60 * Roller finish: 0.8 or more * Rolling thickness: 0 ~ 2mm * Tablet width: 0 ~ 100mm * Roll placement: horizontal placement * Voltage and frequency: AC220V / 50HZ * Power: 200W * Feeding speed: 0 ~ 40mm / s
Specifications	Overall dimensions: L500mm * W360mm * H620mm Equipment weight: 70KG
Standard accessories	One internal hexagonal wrench M4, two dial gauges, one feeler
