High Temperature Atmosphere Controlled Hot Pressing Ceramic Sintering Furnace

Basic InfoModel NO.: HS-1600MCertification: CE, TUVBrand: HSOil Free Compressor: 0.4-0.7MPaUltimate Degree: =< 10-3PATrademark: HSSpecification: 200x200x200mmHS Code: 85141090Type: Ceramic Heating EquipmentStructure: Horizontal TypeTemperature Measurement Method: Infrared Therm
Products Inquiry

Product Details

Basic Info
Model NO.: HS-1600M
Certification: CE, TUV
Brand: HS
Oil Free Compressor: 0.4-0.7MPa
Ultimate Degree: =< 10-3PA
Trademark: HS
Specification: 200x200x200mm
HS Code: 85141090
Type: Ceramic Heating Equipment
Structure: Horizontal Type
Temperature Measurement Method: Infrared Thermometer
Temperature Control Precision: +/-0.5%
Warranty: One Year
Transport Package: Wooden Box
Origin: Zhengzhou, China

Product Description

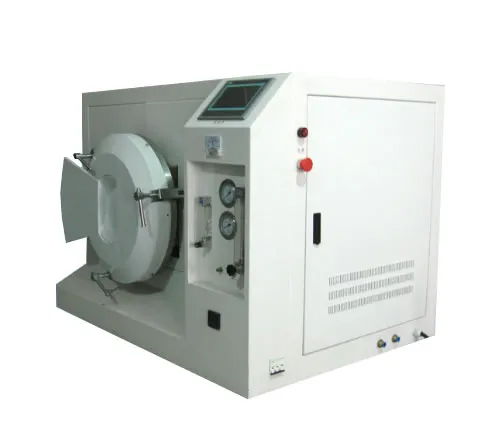

1600°C Microwave Atmosphere Sintering Furnace
Introduction
It's suitable for technical research, such as pyrolysis, synthesis, calcination,heat treatment,sintering, etc. under various conditions of atmospheres.

Specification
 Power Voltage 220V 50HZ three phase 220V 50HZ three phase
Rated Power 13KW 15KW
 Microwave system Microwave output power 0.01-4.20KW
Continuously adjustable		 0.01-5.60KW
Continuously adjustable
Microwave frequency 2.45GHZ+/-25MHZ 2.45GHZ+/-25MHZ
 Thermal insulation system Ultimate temperature 1600C 1600C
Continuously working temperature 1550C 1550C
Heating zone 150x120mm(Dia.x Height) 180x150mm(Dia.x Height)
Heating rate Average heating rate  >=40C/min. Average heating rate is >=40C/min.
 Temperature control system Temperature measurement method Infrared thermometer Infrared thermometer
Temperature measurement range 300-1800C 300-1800C
Temperature control precision +/-0.5% +/-0.5%
 Atmosphere system Static ultimate vacuum degree =< 10-3Pa =< 10-3Pa
 Control system Automatically,manually,
Thermostatically control system,PLC+Touch Screen		 40 segments of programmable technical parameters;data storage and export;curve data in real-time display;dynamic data display,one click autostart high vacuum condition 40 segments of programmable technical parameters;data storage and export;curve data in real-time display;dynamic data display,one click autostart high vacuum condition
 Atmosphere system Vacuum system,two way atmosphere control circuit Quick pre-vacuum pumping,atmosphere options,oxidizing gas,inert gas,weak reducing gas,etc. Quick pre-vacuum pumping,atmosphere options,oxidizing gas,inert gas,weak reducing gas,etc.
Rotary sealing Magnetic fluid
Mute oil free compressor 0.4-0.7MPa 0.4-0.7MPa
 Safety system Microwave leakage prevention Microwave leakage intensity<0.1mW/cm2 Microwave leakage intensity<0.1mW/cm2
Magnetron alarm Built-in over temperature alarm,over-current alarm Built-in over temperature alarm,over-current alarm
Furnace door protection alarm Furnace door shutdown protection switch Furnace door shutdown protection switch
Cooling Water Flow Alarm Flow alarm Flow alarm
 Cooling system High precision cooling water machine Flow rate 2m3/h;rated cooling capacity 5.2KW Flow rate 2m3/h;rated cooling capacity 7.2KW
 Overall dimension Main furnace About 2100x2200x2000mm(LxWxH) About 2100x2200x2000mm(LxWxH)
Floor space About 5m2 About 5m2
