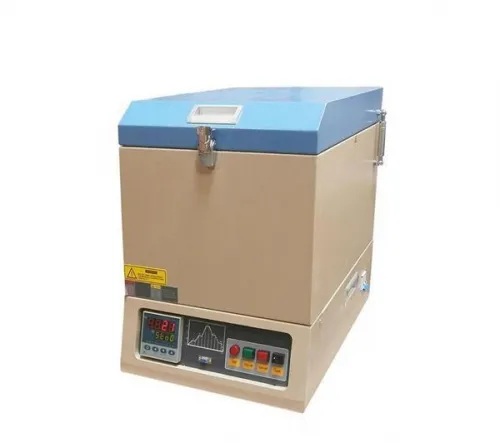

Vertical Crucible Furnace with 9.5"Dia x 8.6"H Chamber with PID Programmable Controller HS-VBF-1200X

Features1. LED digital buttion panel with PID Programmable control2. CE certified, quality warranty3. High quality alumina fiber, good heat preservation effect4. 30 steps Programmable and SCR accuracy temperature control5. Clear heating element, no color greening changing6. Low power, en

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Features
1. LED digital buttion panel with PID Programmable control
2. CE certified, quality warranty
3. High quality alumina fiber, good heat preservation effect
4. 30 steps Programmable and SCR accuracy temperature control
5. Clear heating element, no color greening changing
6. Low power, energy conservation and environmental protection

Model	HS-VBF-1200X
Display	Digital LED button controller
Limiting temperature	1200℃
Working temperature	≤1150℃
Heating rate	Suggestion 0~20℃/min
Temperature accuracy	±1℃
Inside chamber size	Φ240*220(mm),9L capacity
Heating element	Fe-Cr-Al alloy
Thermal couple	K Type
Temperature control	PID automatic control via SCR power control
Heating curves	30 steps programmable
Chamber material	Alumina Fiber
Protective	Built-in over-temperature alarm and thermocouple failure alarm
Rated power	2.5 KW
Working voltage	AC 220V, 50-60Hz
Packing	PLY wood box
Accessories	Door block 1 piece,glove 1pair, crucible tongs 1pc, manual book
