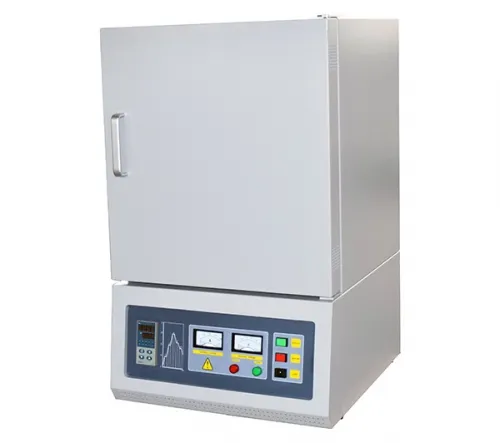

Laboratory 1700℃ High Temperature Muffle Furnace with 120120130mm chamber HS-M1700-2L

Features1. LCD touch screen with PID Programmable control2. CE certified, quality warranty3. High quality alumina fiber, good heat preservation effect4. 30 steps Programmable and SCR accuracy temperature control5. Clear heating element, no color greening changing6. Low power, energy cons

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Features
1. LCD touch screen with PID Programmable control
2. CE certified, quality warranty
3. High quality alumina fiber, good heat preservation effect
4. 30 steps Programmable and SCR accuracy temperature control
5. Clear heating element, no color greening changing
6. Low power, energy conservation and environmental protection

Technical parameters

Model	HS-M1700-2L
Chamber model	Side Door
Display	7” LCD Touch Panel
Limiting temperature	1700℃
Working temperature	≤1650℃
Heating rate	Suggestion 0~20℃/min
Temperature accuracy	±1℃
Inside chamber size	120120130(mm)
Heating element	1800 type MoSi2
Thermal couple	B Type
Temperature control	PID automatic control via SCR power control
Heating curves	30 steps programmable
Chamber material	Alumina Fiber
Rated power	2.5 KW
Working voltage	AC 220V, 50-60Hz
Packing	PLY wood box
Accessories	Door block 1 piece,glove 1pair, crucible tongs 1pc, manual book

Laboratory 1700℃ High Temperature Muffle Furnace with 120*120*130mm chamber HS-M1700-2L

Product Details

Laboratory 1700℃ High Temperature Muffle Furnace with 120120130mm chamber HS-M1700-2L
