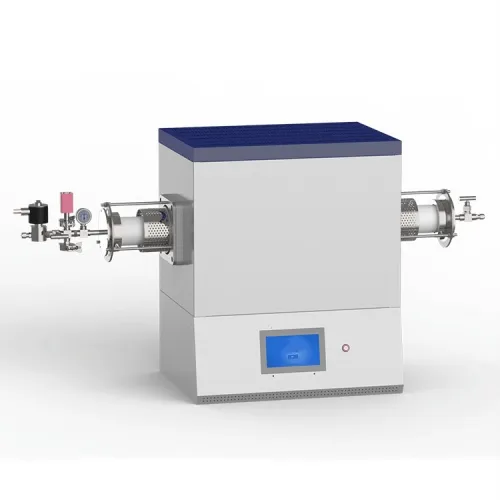

1500℃ tube furnace HS-T1500-50I-T

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

The default heating zone of 1500℃ tube furnace is one zone. Multi-heating zone can also be customized according to customer needs. The temperature zone is controlled by the precision temperature control meter for PID temperature control. The 30-segment temperature rise and fall program can be edited, and the overheating and open circuit of thermocouple protection functions are also available. The furnace adopts closed design, the furnace tube is inserted from the side, and the use is safe and stable, which can effectively prevent the operator from being burned. The flanges on both sides of the furnace tube are equipped with a digital vacuum gauge and a mechanical pressure gauge, which can be used to control the atmosphere in the furnace tube. At the same time, the tube furnace is operated by HD true color touch screen, which is easy to use. Even non-professionals can master the use of the instrument after simple training, which can greatly improve your experiment efficiency.
1500℃ tube furnace application range:
Tube furnaces are mainly used in metallurgy, glass, heat treatment, lithium battery positive and negative materials, new energy, abrasives and other industries, and can also be used for heat treatment in atmospheric environment. It can also be used to form a CVD system for related coating test production.

1500℃ tube furnace technical parameters:

Model	HS-T1500-50I-T
Furnace tube material	High purity alumina
Furnace tube diameter	50mm
Furnace tube length	1000mm
Furnace chamber length	440mm
Heating zone length	400mm
Constant temperature zone	200mm
Operating temperature	0～1500℃
Temperature control accuracy	±1℃
Temperature control mode	30 or 50 segment program temperature control
Display mode	LCD touch screen
Sealing method	304 stainless steel vacuum flange
Flange interface	1/4" ferrule connector (Ø8 pagoda-shape connector)
Vacuum	4.4E-3Pa
Power supply	AC:220V 50/60Hz
