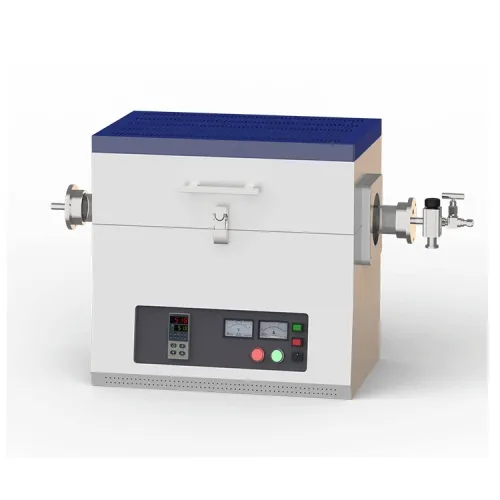

Single-heating zone tube furnace HS-O1200-50I-C

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

This tube furnace has single heating zone, and the heating zone length can also be customized according to customer needs. The temperature zone is controlled by the precision temperature control meter for PID temperature control. The 30-segment temperature rise and fall program can be edited, and the overheating and open circuit of thermocouple protection functions are also available. The flanges on both sides of the furnace tube are equipped with a digital vacuum gauge and a mechanical pressure gauge, which can be used to control the atmosphere in the furnace tube. The instrument adopts LED highlight digital tube display and push-button operation. Even non-professionals can master the use of the instrument after simple training, which can greatly improve your experiment efficiency.
Single-heating zone tube furnace application range:
Tube furnaces are mainly used in metallurgy, glass, heat treatment, lithium battery positive and negative materials, new energy, abrasives and other industries, and can also be used for heat treatment in atmospheric environment. It can also be used to form a CVD system for related coating test production.

Single-heating zone tube furnace technical parameters:

Model	HS-O1200-50I-C
Furnace tube material	High purity quartz
Furnace tube diameter	50mm
Furnace tube length	1000mm
Furnace chamber length	440mm
Heating zone length	400mm
Constant temperature zone	200mm
Operating temperature	0～1100℃
Temperature control accuracy	±1℃
Temperature control mode	30 or 50 segment program temperature control
Display mode	LED (highlight digital tube display)
Sealing method	304 stainless steel vacuum flange
Flange interface	1/4" ferrule connector (Ø8 pagoda-shape connector)
Vacuum	4.4E-3Pa
Power supply	AC:220V 50/60Hz
