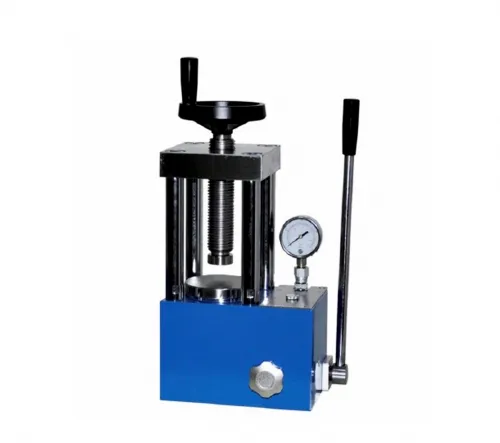

30T Tabletop Manual Powder Hydraulic Press HS-PC-30

Model No.HS-PC-30Pressure gauge0~30T (0~31.5MPa)Piston diameterΦ110mmMain structureAll in one structure, no oil link pointPressure gaugepointer pressure gauge, can replace digit
Products Inquiry

Product Details

 Model No. HS-PC-30
 Pressure gauge 0~30T (0~31.5MPa)
 Piston diameter Φ110mm
 Main structure All in one structure, no oil link point
 Pressure gauge pointer pressure gauge, can replace digital gauge
 Max piston distance 40mm
 Pressure stability ≤1MPa/10min
 Working stage Φ120mm
 Working space 92*160mm
 Outer dimension 275*195*420mm
 Gross Weight 56kg

30T hydraulic press pressure conversion
 Real Pressure System Pressure
 1T 1.05MPa
 3T 3.1MPa
 5T 5.2MPa
 8T 8.4MPa
 10T 10.5MPa
 15T 15.7MPa
 20T 21MPa
 25T 26.3MPa
 30T 31.5MPa
