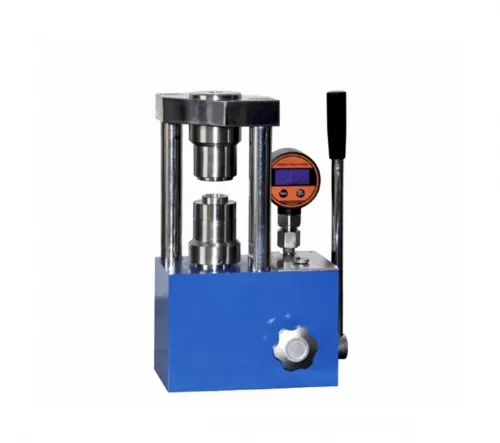

5T Cell Coin Sealing Machine for Cr20 serial coin HS-PC-5NS

Model No.HS-PC-5NSPressure gauge0~5T (0~31MPa)Piston diameterΦ45mmMain structureAll in one structure, no oil link pointPressure gaugeDigital gauge 0.00~40.00MPa&nbs
Products Inquiry

Product Details

 Model No. HS-PC-5NS
 Pressure gauge 0~5T (0~31MPa)
 Piston diameter Φ45mm
 Main structure All in one structure, no oil link point
 Pressure gauge Digital gauge 0.00~40.00MPa
 Standard Sealing mold CR20 sealing mold,CR16/20/24/30 optional
 Sealing pressure 0.8~1.2T
 Disassemble mold CR16, CR20, CR24, CR30
 Disassemble pressure ≤0.4
 Outer dimension 225*155*320mm
 Gross Weight 28kg

5T cell coin sealing machine pressure conversion
 Real Pressure System Pressure
 0.2T 1.25MPa
 0.4T 2.51MPa
 0.6T 3.77MPa
 0.8T 5.03MPa
 1T 6.28MPa
 2T 12.5MPa
 3T 18.8MPa
 4T 25.1MPa
 5T 31.4MPa
