8 Precision Auto Lapping and Polishing Machine with Two Work Stations HS- EQ-Unipol-802

Basic InfoModel NO.: HS-EQ-Unipol-802Structure: DesktopCertification: CE, ISOType: Lapping MachineTrademark: CYKYSpecification: polishing machineCustomized: Non-CustomizedMaterial: SteelApplication: School, LabProduct Name: Lapping and Polishing MachineTransport Package: Wooden

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Basic Info
Model NO.: HS-EQ-Unipol-802
Structure: Desktop
Certification: CE, ISO
Type: Lapping Machine
Trademark: HS
Specification: polishing machine
Customized: Non-Customized
Material: Steel
Application: School, Lab
Product Name: Lapping and Polishing Machine
Transport Package: Wooden Case
Origin: China

Product Description

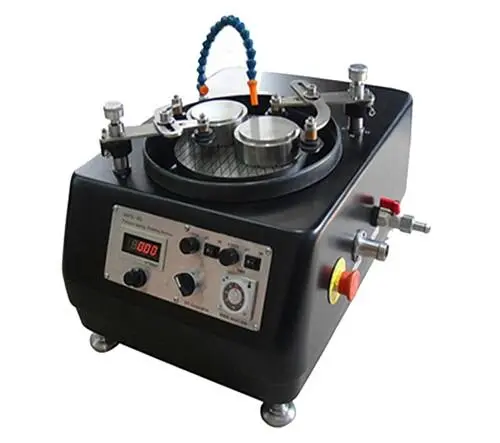

8" Precision Auto Lapping and Polishing Machine with two work stations HS- EQ-Unipol-802
Description of the auto lapping and polishing machine:HS-EQ-UNIPOL-802 machine is equipped with 8" super flat lapping plate and can be used as a high precision lapping machine for polishing crystal components, semiconductor wafers, and ceramic substrates up to 3" in diameter. It can be used as a standard grinding and polishing machine for preparing metallographic samples as well. Combining with flat sample holder (included), the three-hole metallographic sample holder (optional), and precision thinning fixture (optional), the Unipol 802 can lap and polish various samples automatically.

Specification of the auto lapping and polishing machine:

Power	AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.
Features	One cast iron plate for lapping and one cast aluminum plate for polishing. Two rocking workstations with wafer holders and condition rings can be controlled independently for polishing 2 pcs of 3" wafers in one running.
Super-Flat 8" Lapping Plate	Flatness < 2.5 micron="">
Precision Rotating Shaft	Running Off < 5 micron="">
Aluminum Case	Heavy Duty Cast with Bright Painting (Color: Black)
Two Work Stations Rocking Speed	8° Rocking with adjustable speed of 0 - 20 rocking / minute
Two Flat Sample Holders	80 Dia. x 35 T mm for carrying<3" diameter="" wafer="">
Two Condition Rings	95 O.D. x 88 I.D. x 32 T mm
Master Plate Speed Range	0 ~~ 125 rpm variable with digital display
Operation Timer	0 - 99 hours
Motor	300 W high torque DC motor
Dimensions	525 L x 350 W x 325 H (mm)
Net Weight	120 lbs
Optional Parts	Automatic Slurry Feeder 2" Polishing Fixture for Precision / Automatic Thinning and Polishing Polishing Sample Holder with Three 1" Holes for Metallography 8'' high purity ceramic lapping plate
Warranty	One year limited with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty
Compliance	CE Certified
Package Dimensions	40" x 38" x 30"
Shipping Weight	160 lb
Applications	Polishing machine applications
