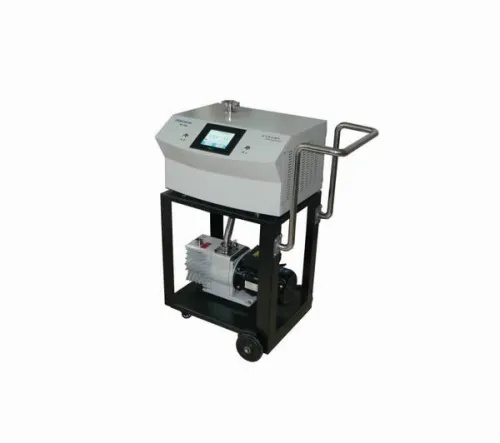

Helium Mass Spectrometer Leak Detector

Technical Parameters:Least detectable leak rateVacuum mode:5×10-13Pa·m3/sSuck gun mode:5×10-9Pa·m3/sLeakage rate display range1×10-3—1×10-13Pa·m3/sStart

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Technical Parameters:

Least detectable leak rate	Vacuum mode: 5×10-13Pa·m3/s Suck gun mode: 5×10-9Pa·m3/s
Leakage rate display range	1×10-3—1×10-13Pa·m3/s
Start up time	≤3min
Response time	≤1.0s
The maximum pressure of the leak detection port	1500Pa
Mechanical pumping speed	16m3/h
Ultimate vacuum	5×10-4Pa
Power Requirements	220V, 50Hz, Single Phase, 10A
Working environment	5-35°C
Relative humidity	≤80%
Dimensions	550 (W) × 420 (D) × 850 (H)
Weight	65kg

Main configuration:

1.	German Pfeiffer molecular pump
2.	German Leybold mechanical pump
3	German Leybold mechanical pump
4	customized solenoid valve
5.	United States AD amplifier
6.	Mass spectrometry module
7.	Filament wire (coated with yttrium oxide) filament
8.	Color Touching screen (AELTA)

Packing List:

Item	product name	Model	Quantity
1	Helium Mass Spectrometer Leak Detector	HS-XL840	1 set
2	Airbag	40L	1
3	spray gun	PNP-989	1
4	Clip	KF25	2 only
5	fuse	8A	2 only
6	Certification	HS-XL840	1 copy
7	power cable	1.8 m	1
8	Molecular pump instructions	SplitFlow 80	1 copy
9	Mechanical pump instructions	D16C	1 copy
10	Leak detector specification	XL Series	1 copy
11	Stainless steel bellows	1.5 m	1
