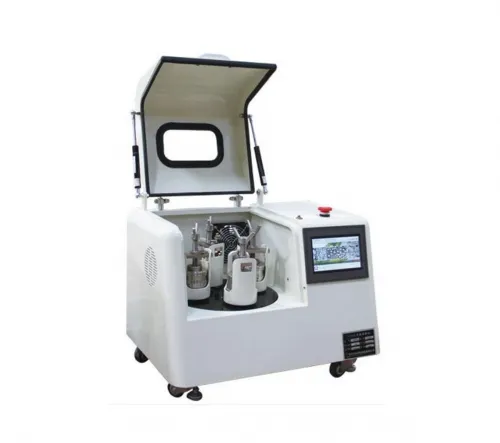

Compact Planetary Vertical Ball Mill with four 250ml Stainless Steel Grinding Jar HS-PBM-V-1L

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Features
1.Elegant design, easy to operate
2.Ideal for wet or dry grinding application
3.Automatic and programmable control with LED display
4.Multiple grinding modes to choose
5.High uniformity and excellent repeatability
6.Fast rotational speed, high efficiency and fine granularity
7.Programmable interval and pause times
8.Four samples with different sizes and materials in one experiment
9.Cooling of the grinding chamber with a built-in fan for long grinding times

Working principle	Impact and friction force
Item no.	HS-PBM-V-1L
Compatible Grinding Jars	250ml * 4
Max Feeding capacity	2/3 capacity of the grinding jar
Operation mode	2 or 4 grinding jars working simultaneously
Feeding granularity	Soil materials < 10mm, others materials < 3mm
Discharging granularity	≤ to 0.1µm
Sample Type	hard, medium-hard, soft, fibrous, brittle, moist
Rotational speed of grinding Jar	900rpm
Rotational speed ratio	2:1
Drive mode	gear drive and belt drive
Speed control	Step-less speed regulation
Electrical details	AC220VAC, 50Hz,0.75Kw
Max continuous grinding time	99hours
Running time setting	0~9999h
Control	PLC programmable control
Grinding jars material	Stainless steel, nylon,zirconia,alumina,manganese steel, Polyethylene, or as customized
Weight	110kg
