Product Details

Product Description

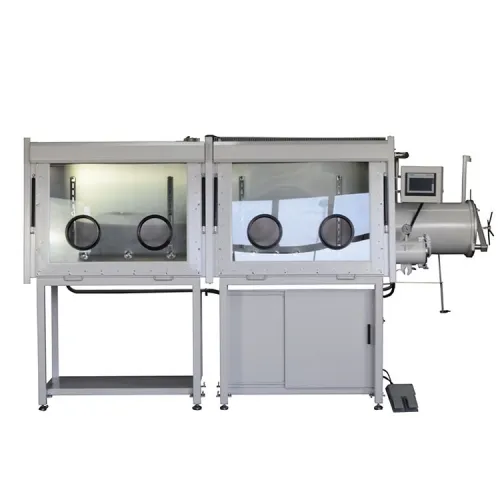

Large Stainless Steel Vacuum Glove Box (Chamber Size: 44"x29"x35") with Airlock Chamber - HS-EQ-VGB-4A
Introduction
HS-EQ-VGB-4A is a heavy duty stainless steel glove box equipped with airlock chamber, gauges, and vacuum flanges. This glove box can operate under vacuum to remove moisture and oxygen without expensive inert gas purging, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions.

Specification

Glove Box Chamber	Case Material: Made of 11 gauge (3mm thickness) 304 stainless steel sheet which provides heavy duty structure for vacuum Dimensions: 1120mm(L) x 740mm(W) x 900mm(H) Max. Positive Pressure: 810 Torr (1.1 atm) Note: Gloves cannot work if pressure is higher than 810 Torr Max. Vacuum Level: 0.5 Torr Note: Stainless Steel case may deform at higher vacuum level
Airlock Chamber with Air Lifting	Dimensions: 360mm(ID) x 435mm(L) Max. Vacuum Level: 0.05 Torr
Transparent Front Panel	Dimension: 1040mm(L) x 405mm(W) Removable for putting in devices 3mm thick plexiglass
Vacuum Gauge and Valves	One vacuum gauge is installed in airlock chamber. 1 set of 1/2" barbed needle valve and 1 KF-25 Vacuum port built in airlock chamber. 1 KF40 port and 2 1/2" barbed needle valves are built on the chamber side of the glove box. 2 sets KF25 port are built on the back of glove box chamber. 3 sets KF40 port are built on the back of glove box chamber for connecting to gas purification system.
Leakage Rate in Glove Box Chamber	< 3 Torr/hour
Power Extension	One extension socket (Max power 1500W) is installed in the glove box main chamber Note: 110V power cord was included for immediate use. (For use with 208~240V power supply, no plug will be included.)
Gloves	Glove port size: 190mm in diameter. One pair of 8" Latex Gloves are included for immediate use. Optional: You may order a pair of 8'' Butadyl® Gloves (with increased stretching, bending ability and tear strength, and offer strong resistance to aromatics, hydrocarbons, solvents, fats, and acids) Clamps and sealing flanges included.
Vacuum pump and Fittings (Optional)	Vacuum pump and fittings are not included.
Warranty	One year limited warranty with lifetime support.
