Dry Glove Box with Humidity Purification System (H2O < 1 ppm) for Li-ion Battery Research - Vgb-7h2

Basic InfoModel NO.: HS-VGB-7H2Structure: DesktopCertification: CE, TUVType: Lab Glove BoxTransport Package: Ply Wooden CartonHS Code: 85143090Customized: CustomizedMaterial: SteelApplication: School, LabTrademark: CYKYOrigin: Zhengzhou, ChinaProduct DescriptionHS-VGB-7H2

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Product Description

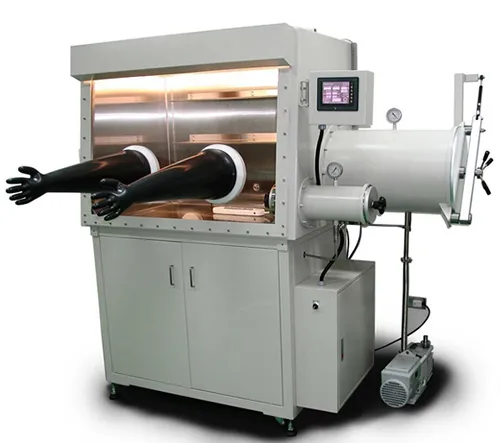

HS-VGB-7H2 is dry glove box with automatic moisture purification system, which can provide a dry gas environment with moisture lower than 1 ppm. It is a cost effective solution for Li-Ion battery research at low cost because most Li-ion battery's electrolyte is sensitive to moisture, but not oxygen. One slidable Sample Shelf is built on top inside glove box to make operation easily

SPECIFICATIONS:

Working Voltage	220V 50/60Hz, Single Phase
Glove Box Chamber & Airlock Chamber	Case Material: Made of 304 stainless steel sheet Dimensions: 1230 mm(L) x 740mm(W) x 900mm(H)Total Height with frame: 1860 mmMax. Positive Pressure: 810 Torr Airlock Chamber with AirliftDimensions: 360mm(ID) x 435mm(L)Max. Vacuum Level: 0.05 Torr Two 175mm diameter glove port with a pair of 6'' Butadyl® glovesOne slidable Sample Shelf is built on top inside glovebox to make operation at easyLED light is built in outside glove box
Gloves	Glove Port size: 190mm(Dia.)8'' Butadyl® Gloves included (with increased stretching, bending ability and tear strength, and offer strong resistance to aromatics, hydrocarbons, solvents, fats, and acids)Clamps and sealing flanges included
Transparent Front Panel	Front Panel made of transparent plastic Dimension: 1200 mm(L) x 700mm(W)Removable for putting in devices
Purification System	Automatic moisture remove to < 2 ppm (Li-Ion battery assembling requires<11 ppm="" moisture="">
Purification Pipeline	304 stainless steel, KF40 port
Vacuum pump	Heavy duty vacuum pump with filter is included for faster vacuum and removing moistureStainless steel vacuum bellow and valve are included
Gasses Requirement	Working gasses: Atmospheric Gases, N2, Argon Regeneration Gas: 95% N2 + 5%H2One float meter built on the front of mobile cart for accurate gas filling
Leakage Rate in Glove Box Chamber	< 3 Torr/hour
Power Extension	One extension socket (Max power 1500W) is installed in the glove box main chamberThe power cord was included for immediate use. (For use with 208~240V power supply, no plug will be included)
Warranty	One-year limited warranty with lifetime supportRusting and damage due to improper storage condition or maintenance are not covered by warrantyGloves are consumable items and are not covered under warranty
Dimensions for Glove Box	Glove box: G1230mm L × 2300mm W × 1860mm H
