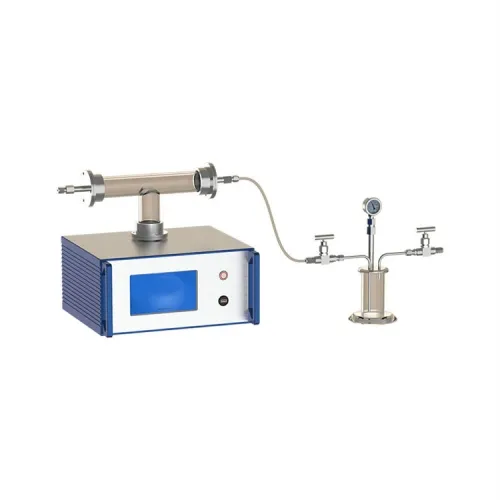

Ultrasonic Enhanced Bubbler/Particle Generator with Condensing Liquid Collector

Basic InfoModel NO.: HS-USP-G-LDStructure: DesktopCertification: CEType: Ultrasonic PrecessorTransport Package: Ply Wooden CartonHS Code: 8479820090Customized: CustomizedMaterial: SteelApplication: School, LabTrademark: CYKYOrigin: Zhengzhou, ChinaProduct DescriptionHS-US

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Basic Info
Model NO.: HS-USP-G-LD
Structure: Desktop
Certification: CE
Type: Ultrasonic Precessor
Transport Package: Ply Wooden Carton
HS Code: 8479820090
Customized: Customized
Material: Steel
Application: School, Lab
Trademark: CYKY
Origin: Zhengzhou, China

Product Description
HS-USP-G-LD is a 2.4MHz Ultrasonic Enhanced Bubbler for aerosol generation. It can be used in line with CYKY Tubing Furnaces to form a versatile synthetic system for nanostructured oxide materials

Features
·2.4MHz Ultrasonic Enhanced Bubbler can "evaporate" catalyst liquid with literally no heat generated.
·304 Stainless Steel 1.5" sanitary TEE fitting with 1/4'' tube fittings enable the use of carrier gas
·Fluoropolymer coated liquid container with fluoropolymer seals
·Microprocessor based control allows the user program operating parameters (time and the rate at which particles are being generated) into the unit, handling a wide variety of applications for accurate particle generation.
·Fluoropolymer optical sensor and Fluoropolymer valve for keeping the liquid level to the correct height and preventing damage to the nebulizing element, the unit should run in dry condition
· Stainless steel liquid condensing collector connects inline with the ultrasonic bubble can prevent condensing liquid from streaming into the furnace tube chamber.
·Using quick clamps allows easy removal of components for cleaning or adapting the device with simple connections to gas supply

Technical Parameters

Input Voltage	AC 220V 50Hz
Ultrasonic frequency	2.4MHz Ultrasonic Generator
Power setting	0 to 100% of the full output capability, in 5% increments
Net Weight	5KG
Shipping Dimensions	12'' Lx 12'' Wx 12'' H
Warranty	One year limited manufacturer warranty with lifetime support (consumable parts such as O-rings are not covered by the warranty).
