Mass Flow Controller (MFC) Gas Mixing System for Tube Furnace CVD System

Basic InfoModel NO.: HSStructure: DesktopCertification: CE, TUVType: Measurement TypeMeasurement Range: -0.1~0.15 MPaPipe Fitting: Stainless SteelTrademark: CYSpecification: three gas channelHS Code: 85141090Customized: CustomizedMaterial: Stainless SteelApplication: LabVol

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Product Description
mass flow controller ( MFC ) for tube furnace CVD system

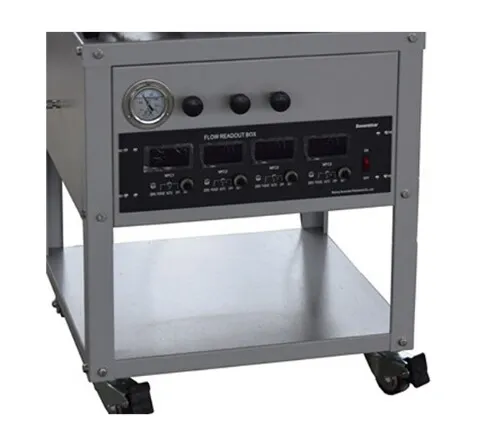

The gas control system is designed for the control of 1-4 types of gases flowing through vacuum-sealed tube furnaces at a low cost. The gas control system is installed in a heavy duty mobile
cart where the tube furnace can be placed on the top. The front panel in the system has adjust
valves and displays for the flow rate of gases. By combining with tube furnaces, it can be used as CVD system and annealing furnace to study the gas environmental influence has on materials.

Specification

Function	Two Channels	Three Channels	Four Channels
Mass Flow Controller	Voltage: 185~245V 50/60Hz Max. Output Power: 18W Working Temperature: 5~45C Max. Pressure: 3x106 Pa Accuracy: ±1% FS Controlling Range: Controller : 1~500 SCCM	Voltage: 185~245V 50/60Hz Max. Output Power: 18W Working Temperature: 5~45C Max. Pressure: 3x106 Pa Accuracy: ±1% FS Controlling Range: Controller : 0~500 SCCM	Voltage: 185~245V 50/60Hz Max. Output Power: 18W Working Temperature: 5~45C Max. Pressure: 3x106 Pa Accuracy: ±1% FS Controlling Range: Controller : 0~500sccm
Removability	4 heavy duty wheels included Max load: 500 Lbs
Mechanical Pressure Gauge	Measurement Range: -0.1~0.15 MPa (0.01 MPa/grid)
Needle Valve	316 Stainless Steel
Pipe fitting	Pipe fitting: 1/4" stainless steel 12'' length 1/4" ID Nylon pipe for immediate use
Gas mixing tank	Φ80X120mm
Stop valve	316 stainless steel needle valve, Φ1/4"
Dimension	600x600x650 mm
Compliance	CE certified
Warranty	One year limited with lifetime support

Service
1. Factory prices with the best quality.
2. One year free-of-charge maintenance for all the dental equipment
3. Customized service for special demand
4. Fast and flexible delivery, by sea, by air, by express
5. Quick response within 24 hours
How to order
1. If you are interested in our products, please tell us the model number and quantity.
2. We will make a proforma invoice for your order.
3. We will deliver the product ASAP on receipt of the payment
Guarantee
1. Guarantee for one year after shipment.
Payment
1. Western Union
2. PayPal
3. Secure Payment through Alibaba
4. Telegraphic transfer
5. L/C
