Precision Digital Gas Mass Flow Indicator Controller Flow Meter Controller

Basic InfoModel NO.: HS-EQ-MFCType: ControllerGas Pressure: 0.1-0.5MPaWorking Temperature: -10c-50cWarranty: One YearStructure: DesktopTrademark: CYSpecification: 0-200sccmHS Code: 85141090Application: Lab, School, IndustryCertification: TUV, CEMax. Pressure: 1MPaDisplay: L

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Product Description

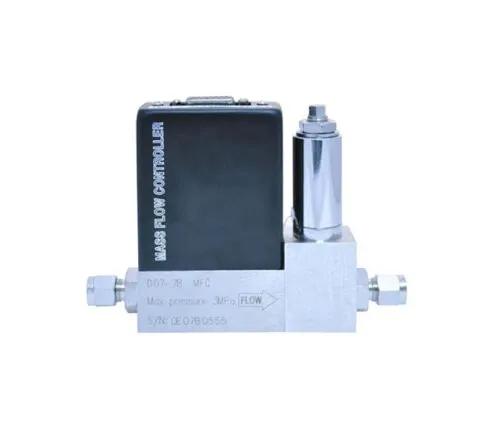

Precision Mass Flow Controller with Digital Display & Stainless Steel Body 0 - 200 SCCM

Specifications:

Flow range	0 - 200 Standard
Materials	SS 316
Control Resolution	+/- 1% FS ( constant flow rate )
Accuracy	+/- 2% FS
Linear	+/- 2% FS
Gas pressure range	0.1 - 0.5 Mpa
Max. Pressure	1 Mpa
Working Temperature	-10oC ~ 50oC
Power supply	AC (110-240V) to DC 15V / 0.5 A (included)
Output signal	4 - 20 mA
Control Method	touch button in front panel
Display	LED digital
Inlet/Outlet Fitting	1/4'' Swagelok Tube Fitting
Dimension	168 L x 30 W x 132 H, mm
Weight	920 grams (2 lbs)
Shipping Dimension	13'' L x 10'' W x 5'' H
