High Purity Quartz Tube for Tube Furnace and Induction Heater

Basic InfoModel NO.: HS-EQ-HQT60Certification: CE, TUVBrand: CyTube Size: CustomizedTransport Package: Wooden BoxOrigin: Zhengzhou, ChinaType: Ceramic Heating EquipmentStructure: Horizontal TypeMax. Temperature: 0-1050cTrademark: CYSpecification: OD. 60mmHS Code: 85141090

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Product Description

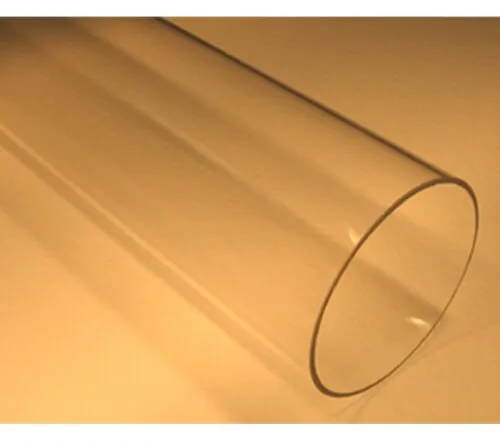

60 OD x 57.5 IDx 250L mm Half Open Quartz Tube for DIY Tube Furnace/induction Heater - EQ-HQT60
Introduction
HS provides the high purity quartz tube as replacement part for high temperature tube furnaces/induction heaters in universities, companies, and national labs. It can be used at operating temperature up to 1050ºC.

Specification

O.D	60mm ±0.5mm (2.36")
I.D	54mm ±0.5mm (2.13")
Tube Length	250mm (10")
Max. Operating Temperature	1050ºC
Application Notes	For vacuum sealing, please choose vacuum flanges at the related products below You may melt metal sample in vacuum using 60mm dia half open quartz tube with flange. Please click the picture on the left to see the details and order related products below (You will need to grind the crucible's top edge diameter to<54mm to="" fit="" into="" this="" quartz="" tube=""> You may also order some Refractory Material to support the crucible, and an Alumina Crucible Lid (45mm dia)
