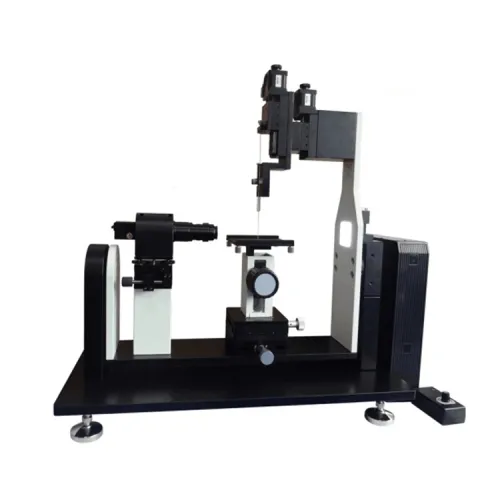

Dynamic Contact Angle Meter/Contact Angle Tester (Dynamic Integral Inclined Type)

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

In this product, besides the static contact angle measured by stop-drop method, the dynamic contact angle (including forward contact angle, backward contact angle and rolling angle) can be measured and analyzed by inclined plate method. At the same time, the liquid surface tension can be measured, the solid surface energy can be estimated and the wettability can be analyzed. Widely used in biochemical industry, nanotechnology, coating technology, water-resistant materials, science, education, military and other cutting-edge areas of testing and research.

Dynamic Contact Angle Meter/Contact Angle Tester Specifications:

Model		HS-CAM33
Drip System	Drip Way	Automatic Type
	Min. Drip Volume	0.1μl / Drop
	Drip Precision	±0.05μl
Contact Angle Test	Calculation Method	Height-Width Method, Angle Measuring Mmethod, Ring Method, Ellipse Method, Fitting Method, Young-Laplace Method
	Test Range	0°～180°
	Test Error	±0.1°
	Test Resolution	0.001°
Surface / Interfacial Tension Test	Calculation Method	Manual Method, Automatic Method
	Test Range	0.01～1000mN/m
	Test Error	±0.1%
	Test Resolution	0.001mN/m
Estimation of Surface Energy	Estimation Model	Fowkes, Extended Fowkes, Owens-Wendt, van OSS, Wu Harmonic Mean, Equation of State
Estimation of Surface Energy	Liquid Database	Preset urface tension and component data of 37 kinds of commonly used liquids
Inclined Sample Stage	Mesa Dimension	X100×Y90mm
	Mobile Stroke	X50×Y50×Z50mm
	Mobile Mode	Manual
	Inclined Mode	Automatic
	Inclined Range	0°～±90°
	Inclined Error	±0.01°
Dimension		W585×D280×H650mm
Weight		25kg
Power		AC220V 50HZ
