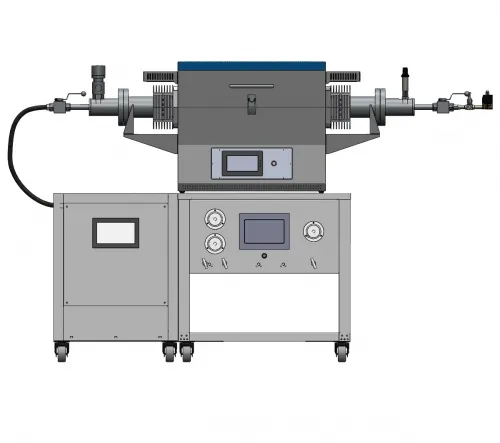

Laboratory High Pressure &Temperature Tube furnace with Three Gas way mixer-HS-FH-S150

Features1.PC and PID Programmable control, easy operation2.Over pressure &over temperature protective, make sure user's safety3.Compact structure with mobile carrier, easy move and using.ModelHS-FH-S150Process VesselsNi-based super-alloy&nbs

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Features
1.PC and PID Programmable control, easy operation
2.Over pressure &over temperature protective, make sure user's safety
3.Compact structure with mobile carrier, easy move and using.

Model	HS-FH-S150
Process Vessels	Ni-based super-alloy ID50 x OD 60 x Length 1000 (mm)
Copper gasket	For 60mm O.D tube: 82 O.D x 63.6 I.D x 2.2mm
Working Pressure vs. Working Temperature	15 Mpa max. at ≤800°C 10 Mpa max. at ≤900°C 5 Mpa max. at ≤1000°C 2.5 Mpa max. at 1100°C Attention: Never heat up above 1100°C
Working Gases	Inert gas and oxygen, etc
Heating Temperature	1100°C max.for < 1hr 1000C for continuous
Heating Rate	≤20°C/min
Heating Element	Resistance wire
Heating Zone	Total length: 440mm Single zone Constant temp. zone: 150mm ±1°C
Temperature Control	PID control method with over-temp protection Temperature stability: ±1°C Touch screen controller with LCD display
Thermocouple	K type
Pressure Measurement Range	0~15Mpa
Pressure safety device	1)high pressure sensor installed in high-pressure flange
	2)high pressure solenoid valve controlled by pressure monitor
	3)automatic gas release port
	4)pressure transducer
	5)manual valve for disconnect solenoid
PC control	Temperature & Pressure,
	Show the screen of software by English version
	brand new Laptop (optional)
Pressure Alarm System	Upper limit and lower limit control method Alarm strobe and warning whistle
Standard Accessories	high pressure super-alloy furnace tube, 1ea
	high pressure sealing flanges and the related accessories like copper O-rings, screws, 1set
	high pressure solenoid valve and pressure transducer, 1set
	dust free protective gloves, 1 pair
	tube blocks, 1 pair
	furnace hook, 1ea
	quartz boat, 1ea
Additional spare parts	spare copper O-ring
Additional spare parts	high pressure superalloy furnace tube
Power	AC 220V 50/60Hz, 4.5KW
Shipping package Dimension	11201120900mm
Shipping weight	Around 210kg
Warranty	1 year
Certificate	CE
Operation Instructions	operating manual by English version
