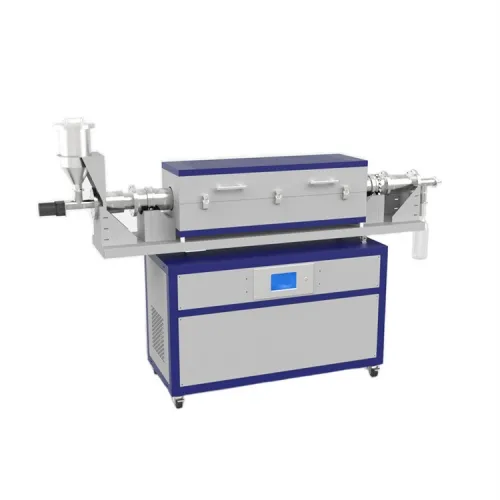

Three-zone rotary tube furnace with continuous powder feeding & receiving system HS-O1200-100IIIT-R

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

HS-O1200-100IIIT-R is a three-zone rotary tube furnace with a feeder and a receiving tank. The feeder can feed the powder into the furnace tube at a rated rate, and the powder material can be continuously wrapped and modified by the CVD method under the atmosphere protection environment. The receiving tank can collect the processed powder in an atmosphere protection environment.
Three-zone rotary tube furnace with continuous powder feeding & receiving system application:
This tube furnace is designed to coat the conductive layer on the cathode material of Lithium-ion battery (such as LiFePO3, LiMnNiO3), and also to prepare Si/C anode material by CVD.

Three-zone rotary tube furnace with continuous powder feeding & receiving system specifications:

Vacuum tube furnace	Max power	4.5kw
	Tube material	Outer tube stainless steel, inner tube quartz
	Tube diameter	100mm (60mm at both ends, 100mm in the middle)
	Tube length	1200mm
	Furnace chamber length	660mm
	Heating zone length	200mm+200mm+200mm
	Constant temperature zone	200mm
	Operating temperature	0～1100℃
	Temperature control accuracy	±1℃
	Temperature control mode	30 or 50 segment program temperature control
	Display mode	LCD
	Sealing method	304 stainless steel vacuum flange
	Flange interface	1/4" ferrule connector, KF16/25/40 joint
	Vacuum	4.4E-3Pa
	Power supply	AC:220V 50/60Hz
	Inclination angle	0~15°
	Rotating speed	0~20 rpm
Gas supply system	Model	HS-3F
	Gas channel	3-channel
	Measuring unit	Gas float flow meter
	Measuring range	A channel: 0～100ml H2 gas	Remarks: If you need other ranges or gas types, you need to specify when ordering. According to the customer's specific requirements, the flow meter of the corresponding gas type and range can be selected.
		B channel: 16～160ml N2 gas
		C channel: 25～250ml Ar gas
	measurement accuracy	±2.0%
	Pipe pressure resistance	3MPa
	Working pressure difference	50～300KPa
	Connecting pipe	304 stainless steel
	Gas channel	304 stainless steel needle valve
	Interface specification	1/4" ferrule connector for gas inlet and outlet
Exhaust system	Mechanical pump	Rotary vane pump
	Pumping rate	1.1L/S
	Exhaust interface	KF16
	Vacuum measurement	Resistance gauge
	Ultimate vacuum	1.0E-1Pa
	Power supply	AC:220V 50/60Hz
	Pumping interface	KF16
