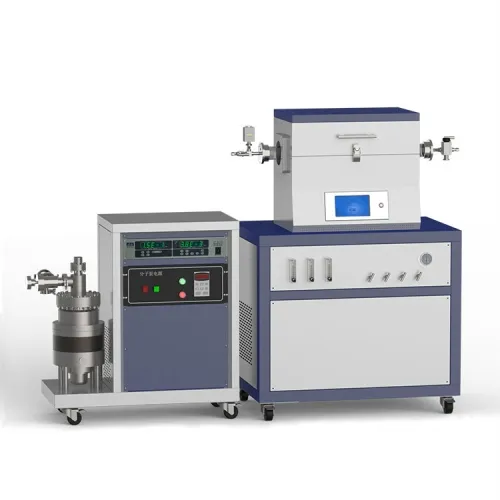

1200℃ single heating zone high vacuum CVD system consists of a single heating zone tube furnace, a three-channel float flow meter and a high vacuum molecular pump set. The tube furnace is controlled by the precision temperature control instrument for PID temperature control. It can edit the 30-segment raising and falling temperature program and has the function of overheating and short circuit protection. The flanges on both sides of the furnace tube are equipped with a digital vacuum gauge and a mechanical pressure gauge, which can be used to control the atmosphere in the furnace tube. At the same time, the tube furnace is operated by high-definition true color touch screen, which is easy to use. Even non-professionals can master the use of the instrument after simple training, which can greatly improve your experiment efficiency.
The system is equipped with a three-channel float flowmeter, which can mix 1~3 channels of gas to accurately prepare the mixed gas required for the experiment. Another pressure gauge is installed on the front of the float flowmeter to monitor the gas pressure and the mixing tank pressure.
This system is also equipped with a precision molecular pump set, which can achieve a vacuum of 1.0E-3pa level, which can provide users with a purer and more stringent experimental environment than ordinary mechanical pumps.

1200℃ single heating zone high vacuum CVD system applications:
It is suitable for high-temperature sintering, metal annealing, quality inspection, etc. in universities, research institutes, industrial and mining enterprises, especially for CVD experiments that require a variety of gas mixing atmospheres.

1200℃ single heating zone high vacuum CVD system technical parameters:

Vacuum tube furnace	Model	HS-O1200-50IT
	Tube material	High purity quartz
	Tube diameter	50mm (Optional 60mm/80mm/100mm)
	Tube length	800mm
	Furnace chamber length	440mm
	Heating zone length	400mm
	Constant temperature zone	200mm
	Operating temperature	0～1100℃
	Temperature control accuracy	±1℃
	Temperature control mode	30 or 50 segment program temperature control
	Display mode	LCD
	Sealing method	304 stainless steel vacuum flange
	Flange interface	1/4" ferrule connector, KF16/25/40 joint
	Vacuum	4.4E-3Pa
	Power supply	AC:220V 50/60Hz
Gas supply system	Model	HS-3F
	Gas channel	3-channel
	Measuring unit	Gas float flowmeter
	Measuring range	A channel: 0～100ml/min H2 gas	Remarks: If you need other ranges or gas types, you need to specify when ordering. According to the customer's specific requirements, the flow meter of the corresponding gas type and range can be selected.
		B channel: 16～160 ml/min N2 gas
		C channel: 25～250 ml/min Ar gas
	Measurement accuracy	±2.0%
	Pipe pressure resistance	3MPa
	Working pressure difference	50～300KPa
	Connecting pipe	304 stainless steel
	Control valve	304 stainless steel needle valve
	Interface specification	1/4" ferrule connector for gas inlet and outlet
Exhaust system	Model	HS-GZK103-A
	Molecular pump	HS-600
	Backing pump	Rotary vane pump
	Pumping rate	Molecular pump: 600L/S	Comprehensive gas pumping performance: the vacuum can reach 1.0E-3Pa in 30 minutes.
		Rotary vane pump: 1.1L/S
	Pumping interface	KF40
	Exhaust interface	KF16
	Vacuum measurement	Compound vacuum gauge: Resistance gauge + ionization gauge
	Ultimate vacuum	1.0E-5Pa
	Power supply	AC:220V 50/60Hz
