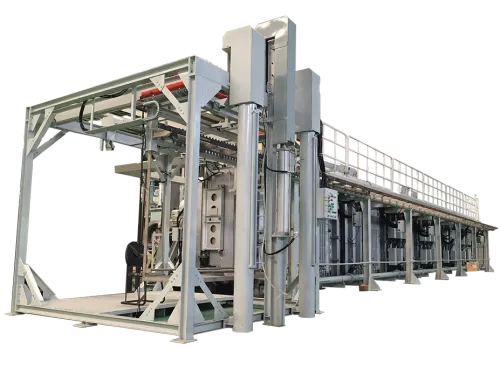

Multi-chamber continuous vacuum brazing furnace

DESCRIPTIONIt is suitable for brazing of stainless steel, carbon steel, copper, high-temperature alloy, titanium alloy and other materials such as nickel, copper, silver, titanium, etc., as well as vacuum brazing of aluminum alloy devices such as aluminum heat exchangers and radar panel antennas.
Products Inquiry

Product Details

DESCRIPTION
It is suitable for brazing of stainless steel, carbon steel, copper, high-temperature alloy, titanium alloy and other materials such as nickel, copper, silver, titanium, etc., as well as vacuum brazing of aluminum alloy devices such as aluminum heat exchangers and radar panel antennas.

Technical Parameters
  model Sample Brazing chamber temperature Characteristics Number of rooms Composition
Effective space Processing capacity（Kg）
 Aluminum brazing 312 300*1200*900 60 Up to 700 ° C
Soaking: 600±3°C
(under high vacuum）		 Multi-chamber free combination, multi-zone temperature control, independent degreasing, fast heating, energy saving, memory temperature measurement 1 Brazing
318 300*1800*1200 160 3 Preheating + brazing + removal
324 300*2400*1000 300 4 Preheating + degreasing + brazing + removal
412 400*1200*900 80 6 Preheating + degreasing + preheating + brazing + cooling + removal
418 400*2400*1800 200 2 Insert, remove + braze
424 400*1200*900 400 3 Preheating + brazing + strong cooling
 Copper brazing 212 250*1200*900 200 Up to 1200 ° C
Soaking: 1150 ± 5 ° C (under high vacuum)		 4 Preheating + degreasing + brazing + strong cooling
217 250*1700*900 300 5 Preheating + degreasing + brazing + cooling + strong cooling

Technical Characteristics
Introducing advanced Japanese technology, multi-chamber combination, multi-zone temperature control, advanced heat insulation and sealing integrated intermediate flapper valve, continuous operation, high degree of automation, good product consistency, high efficiency and energy saving.
