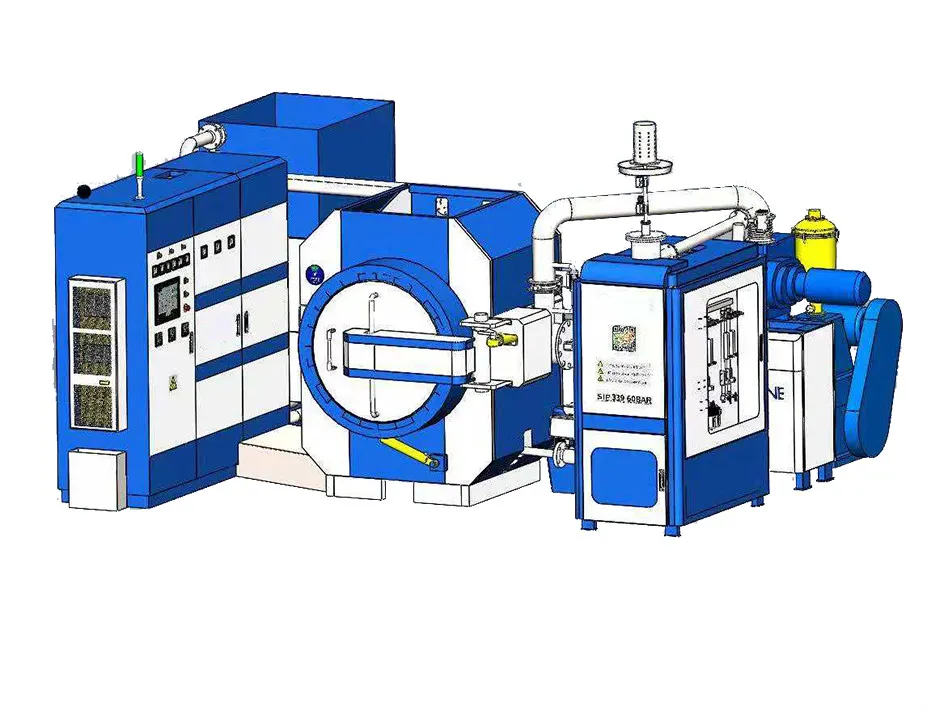

Purification furnace

DESCRIPTIONIt is mainly used for high-temperature graphitization and high-temperature purification treatment of carbon/carbon composite materials, carbon fiber insulation materials and graphite products.Technical ParametersmodelZVC-060609ZVC-080812ZVC-101015

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

DESCRIPTION
It is mainly used for high-temperature graphitization and high-temperature purification treatment of carbon/carbon composite materials, carbon fiber insulation materials and graphite products.

Technical Parameters

model	ZVC-060609	ZVC-080812	ZVC-101015	ZVC-131320	ZVC-151530	ZVC-202040
Work area size W×H×L(mm)	600×600×900	800×800×1200	1000×1000×1500	1300×1300×2000	1500×1500×3000	2000×2000×4000
Maximum temperature (°C)	2600	2600	2600	2600	2600	2600
Temperature uniformity (°C)	±7.5	±7.5	±10	±10	±15	±20
Ultimate vacuum (Pa)	50	50	50	50	50	50
Pressure rise rate (Pa/h)	0.67	0.67	0.67	0.67	0.67	0.67

Technical Characteristics
1) The equipment can be designed according to customer requirements, which can meet the high temperature processing requirements of ultra-large workpieces;
2) This equipment adopts Dingli Technology's exclusive ultra-high temperature and high-current power-on technology, which can be used stably for a long time under the condition of 2600 °C;
3) Independent temperature control in multi-temperature zone, good temperature uniformity;
4) Using special high temperature infrared measurement technology, accurate temperature control and small error;
5) Optional external and external circulation external cooling system, single furnace production cycle is short, high efficiency.
