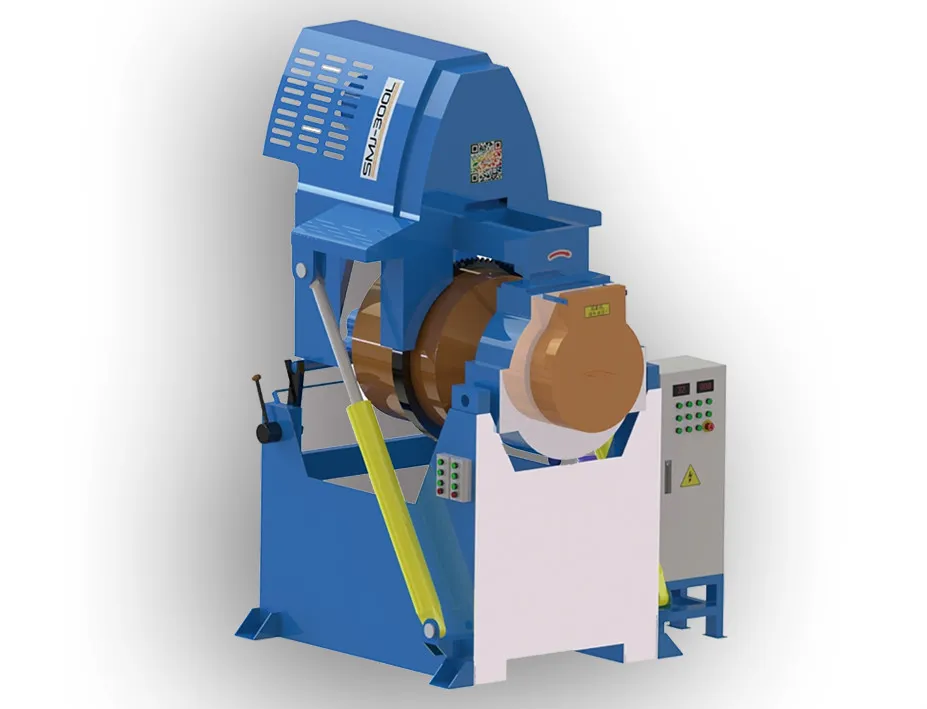

Tilting wet mill

DESCRIPTIONThe tiltable wet mill is mainly used for the mixing and grinding of powder metallurgy powder materials.Technical ParametersmodelBall mill volumeLpowerLoading and unloading angleBall mill speedLoading weightNet weight of equipment

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

DESCRIPTION
The tiltable wet mill is mainly used for the mixing and grinding of powder metallurgy powder materials.

Technical Parameters

model	Ball mill volumeL	power	Loading and unloading angle	Ball mill speed	Loading weight	Net weight of equipment	Equipment dimensions
QSM-100	100	4KW	±45°	0-40RPM	100kg	720kg	10.71.5m
QSM-300	300	13KW	±45°	0-40RPM	100kg	1850kg	1.51.32m
QSM-600	600	16KW	±45°	0-40RPM	100kg	2900kg	1.81.42.5m

Technical Characteristics
1) The bucket is a water-cooled jacket and the cooling speed is fast;
2) The barrel can be tilted up and down, the feeding is convenient, and the discharging is complete;
3) The equipment suddenly breaks water and is automatically protected;
4) The drum speed is adjustable and the control is reversed;
5) The equipment is lifted and lowered with an explosion-proof button switch;
6) There is an infrared thermometer on the outer wall of the water jacket, which exceeds the set temperature alarm shutdown protection;
7) The outer wall of the barrel is made of stainless steel to ensure long life and no corrosion or water leakage.
