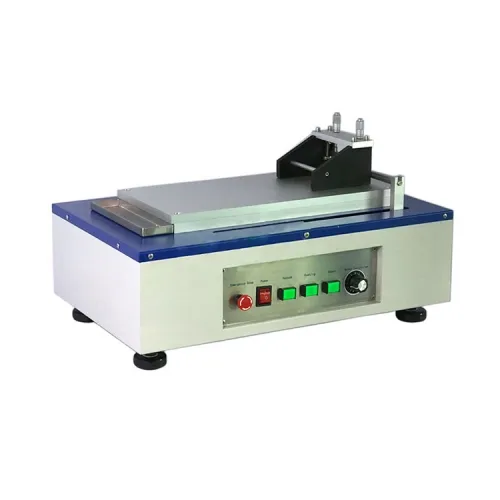

Large automatic film coater with glass bed

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Large automatic film coater is widely used in various high temperature coating research, such as ceramic film, crystal film, battery material film, special nano film and so on.Large automatic film coater is made of high quality flat glass, and the sample is held by the sample holder on one side. During the coating process, the speed of the coating roller is adjusted by a speed control knob to make the coating roller spread forward at a uniform speed. The width of the film is fixed for the sample blade pitch. The film thickness can be adjusted according to the micrometer above the blade, between the blade and the substrate. When the gap is small, the thickness of the prepared film is thin; when the gap between the blade and the substrate is large, the thickness of the prepared film is thick.

Large automatic film coater specifications:

Working Voltage	INPUT: 24VDC A UL/CSA listed 100-240VAC IN - 24VDC OUT power adapter is included.
Max. Power Consumption	350W
Traverse Speed	●5 - 100 mm/sec variable ●Accuracy: 10mm/sec
Stroke Length	10-550 mm adjustable by using Adjustable Position Switch
Max. Coating Dimensions	250mm(W) x 550mm(L)
Platform	●600mm L×300mm W×20mm Thick flat tempered glass plate. ●One clip is included to keep the substrate stable during coating.
Film Applicator	●One 250 mm width Micrometer Adjustable Film Applicator is included, with adjustable thickness from 0.01 mm - 5 mm. ●Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating. ●Note: Thinnest film can be achieved is > 10 micron.
Product Dimensions	805mm(L)×430mm(W)×223mm(H)
Warranty	One Year limited warranty with lifetime support
Net Weight	30 kg (67 lbs)

Large automatic film coater standard packing:

Item	Description	Qty
1	Large Automatic Film Coater	1
2	Traverse Pusher	1
3	Micrometer Adjustable Film Applicator - 250 mm (film casting doctor blade)	1
4	Power Cable (Note: 220V Power plug is not included.)	1
5	Waste Plate	1
6	Instruction CD	1
