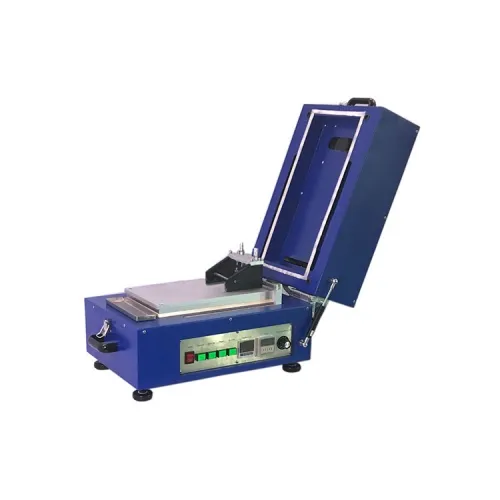

Top heating type automatic film coater

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when coating on the thin substrate and making uniform tape casting. The 100℃ heating cover on the top vaporizes the water immediately and there is a micrometer adjustable applicator included for immediate use. This machine can be used for research on ceramic tape casting and Li-Ion battery electrode coating.

Top heating type automatic film coater specifications:

Working Voltage	INPUT: 24VDC Heating Power: Two options110VAC and 220VAC, Please select the voltage based on requirement.
Max. Power Consumption	1250W
Traverse Speed	5 - 100 mm/sec variable Accuracy: 10mm/sec
Stroke Length	10-550 mm adjustable by using Adjustable Position Switch
Max. Coating Dimensions	250mm(W) x 550mm(L)
Vacuum chuck	●Vacuum chuck made of Aluminum alloy with < 1 mm holes ●Vacuum Chuck Dimensions: 600mm(L) x 300mm(W) x 20mm(H)
Heating Cover	●Voltage Selection: 110VAC and 220VAC ●Heating Power: 1200W
Film Applicator	●One 250 mm width Micrometer Adjustable Film Applicator is included, with an adjustable thickness of 0.01 mm - 5 mm ●Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating ●Note: Thinnest film can be achieved is > 10 micron
Net Weight	30 kg (67 lbs)
Warranty	One-year limited warranty with lifetime support
