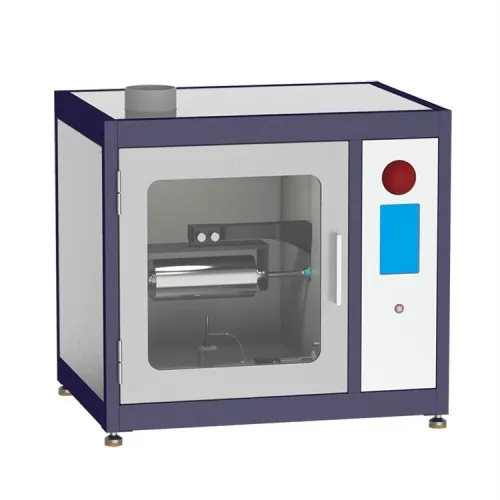

High-voltage electrospinning machine with coaxial nozzle and drum collector

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

This high-voltage electrospinning machine is for preparing ultra-fine fibers with the diameter of 20-1000nm by using a polymer solution or molten liquid in a strong electric field. The nanofiber has a high specific surface area, small diameter, and large porosity. There are more than 100 kinds of polymers could be used as raw materials, and also protein, collagen, organics (PEO, DNA, PAA, PLA, nylon, polyester, acryl resin, PVA, PS, PAN, peptide, cellulose).
Main parts: liquid supply device, high voltage power supply, spinning nozzle, collecting device
1. Liquid supply device: uses two professional scientific research syringe pumps, can provide liquid with continuously stable flow, and the liquid supply speed is adjustable to meet the needs of different spinning solutions.
2. High voltage power supply: can provide a stable electric field for a long time, electric field strength standard 0~30KV.
3. Spinning nozzle: Coaxial nozzle, which is composed of two inner and outer layers of two needles with different diameters. It can be used to make hollow-structured nanofibers, shell-core structured nanofibers, micron fibers, etc. Using coaxial spray technology, polymers with different properties can be combined to make nanofibers with special properties. In addition, some polymers with poor spinning performance can also be prepared into special nanofibers by coaxial spray technology. In this case, the polymer with poor spinnability should be used in the outer layer of the coaxial nozzle, and the polymer with good spinning performance as the inner structure. Besides, the support of spinning nozzle is adjustable for obtaining the best spinning distance and non-woven fabrics with different widths, which can perform automatic reciprocating motion parallel to the collector, effectively improve the uniformity.
4. Collecting device: standard configuration is one drum collector. Other plate collectors are optional.

Technical parameters:

Input Power supply		AC220V 50Hz
High voltage power supply	Output voltage	0~30KV
	Max. current	1mA
	Max. Power	30W
	Temperature Coefficient (Temperature Drift)	0.1%/℃
	Stability	0.1%/h (after 30 minutes preheating time)
	Load Regulation	0.5％
	Adjustment mode	Potentiometer adjustment
Heater	Heating method	Infrared heating tube
	Working temperature	≤ 60℃
	Max. heating power	1 KW
Syringe pump	Quantity	2 sets
	Channel for each pump	1
	Capacity	2.5ml-60ml
	Flow range	2.779 μl/min~72.24 ml/min
Spinning nozzle	Coaxial nozzle	Used to make hollow-structured nanofibers, shell-core structured nanofibers, micron fibers, etc.
Collectors	Drum collector	Size: 200mm* Φ100mm Driver: brushless motor Rotating speed: 300-4000rpm Can be used for electrospinning
Humidity Monitor		A humidity monitor is for monitoring the humidity level (RH%) ranging from 2% - 95%
