Product Details

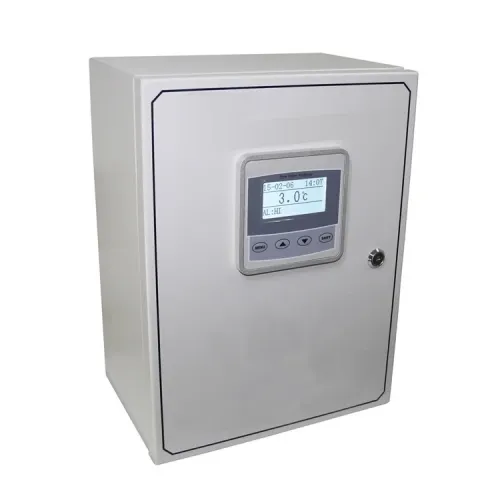

Wall-mount dew point analyzer adopts imported capacitive dew point sensor, which has the characteristics of quick response, high sensitivity and good repeatability.Wall-mount dew point analyzer. The wall mount mode makes it convenient to operate at scene and easy to maintain.
Wall-mount dew point analyzer main features:
1.With the function of data auto-storing, the interval of recording time can be set freely among the range of 1min~24h and the alarm point can be set freely, too;
2.It can do one-way or two-way communication with the computer;
3.It has a long calibration cycle, 2 years in usual.
4.Reverse blow function (optional) can be expanded to prevent the filter from being polluted for too long to influence the measurement of the oxygen concentration;
5.The imported extraction pump is built in.

Wall-mount dew point analyzer technical parameters:

Test principle	thin-film capacitor
Display mode	128×64 matrix dot LCD
Test range	basic type,-60 ~ +20℃ standard type,-80 ~ +20℃ expansive type,-100 ~ +20℃
Accuracy	≤±1℃(0 ~ -60℃) ≤±2℃(below -60℃)
Resolution	0.1℃
Response time	-40→-10℃5s(10s) -10→-40℃15s(240s)
Repeatability	≤±1.5℃
Analog output	4-20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm） 0-5V.DC(non-isolated output, loaded resistance higher than 10k Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication port	RS232(default)or RS485
Power supply	AC170 ~ 265V 50/60Hz
Working temperature	-10 ~ +50℃
Sampling mode	sample gas pass-in or extraction
Sample gas flow	2 ~ 4L/min
Sample gas pressure	(without pump) 0.05MPa≤entrance displayed pressure≤ 0.35MPa
Sample gas pressure	(with pump) micro-positive pressure, micro-negative pressure or ordinary pressure
Background gas	H2, He, inactive gas and hydrocarbon, etc
Appearance Size	400mm×300mm×200mm（H×W×D）
Serving life	＞4 years(under normal use)
Gas circuit port	NPT 1/8 internal thread
Install mode	wall mount
