Product Details

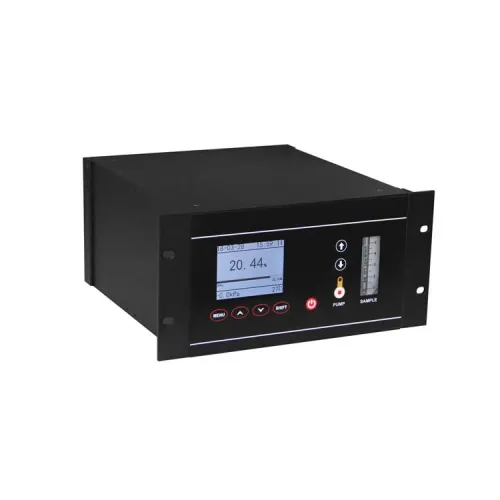

Embedded oxygen analyzer has a friendly man-machine dialogue menu, which is intuitive and convenient to operate. The measurement does not require a reference gas and is not affected by the oxygen concentration in the working environment. It can communicate with upper computer in one way or two ways.
Embedded oxygen analyzer main features:
1.320×240 graphic dot matrix color LCD display, the display is delicate and clear;
2.Original imported zirconia sensor, high measurement accuracy, fast response, long calibration period, etc.
3.Built-in original imported sampling pump, long life and reliable operation;
4.RS232 (default) or RS485 data communication interface is optional according to user needs;
5.Air circuit block alarm and self-protection function, the sampling pump is automatically turned off under the condition of gas path failure, effectively extending the service life of the sampling pump and the sensor;
6.Wide range of AC power supply, wider application range;
7.Built-in temperature and pressure automatic compensation module.

Embedded oxygen analyzer technical parameters:

Measuring principle	Zirconium dioxide
Display mode	320×240 graphic dot matrix color LCD
Measuring range	0 ~ 10/100/1000ppm / 1.00% / 25.00% O₂
Measurement accuracy	0~1000ppm /1.00% / 10.00% / 25.00% ≤±1% FS 0~100ppm ≤±2% FS 0~10ppm ≤±5%FS
Resolution	1ppm
Repeatability	≤±1%
Response time	T₉₀ ≤ 30S
Analog output	4~20mA.DC (non-isolated output, load resistance less than 500 ohms) 0~10V.DC (non-isolated output, load resistance greater than 10K ohms) 1 way programmable dry contact passive alarm output, contact maximum capacity 220VAC/2A
Other interface	RS232 (default) or RS485
Power supply	AC85 ~ 264V 50/60Hz
Sample gas temperature	-10 ~ +50℃
Sample gas flow	2 ~ 2.5l/min
Sampling mode	Extract air, ejection or extract air ejection
Sample gas pressure	micro positive pressure, micro negative pressure or normal pressure
Background gas	mixed gas such as N₂ and inert gas
Size	127mm × 266mm × 278mm (H × W × D)
Hole size	129mm × 212mm (H × W)
Service life	>4 years (under normal use conditions)
Air circuit interface	NPT 1/8 internal thread
Installation method	placed or embedded
