Product Details

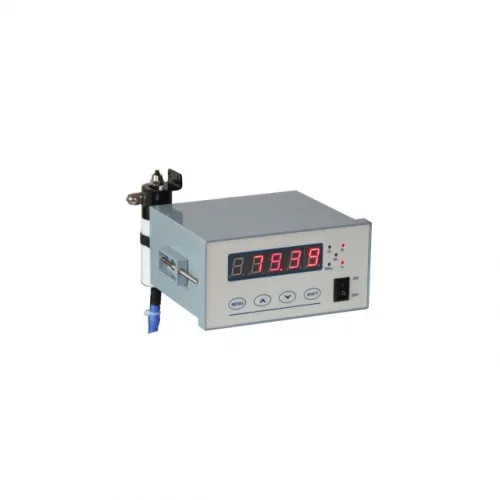

Nitrogen/Oxygen analyzer adopts imported new long-life imported zirconia detector with high sensitivity and fast response. nitrogen-oxygen analyzer has a high-precision temperature automatic compensation system to eliminate the influence of ambient temperature.
Nitrogen/Oxygen analyzer main features:
1.N2 or O2 display mode is available;
2.The upper and lower alarm limits can be set freely among the whole range;
3.The accurate measurement of oxygen concentration among the range of ppm ~ % can be met through one-point calibration in the air;
4.With power supplied at a wide range, the influence from mains fluctuation on the analyzer can be eliminated;
5.With an external printer, the test parameters can be printed manually or automatically (optional);
6.The size is small and easy to maintain.

Nitrogen/Oxygen analyzer technical parameters:

Test principle	zirconia
Display mode	5 bits LED display
Test range	10/100/1000ppm, 21.000% O₂/N₂
Accuracy	≤±1.5% FS
Repeatability	≤±1%
Response time	T₉₀≤30S
Analog output	4-20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Environment humidity	＜90%RH
Power supply	AC85~264V 50/60Hz
Sample gas temperature	-10 ~ +50℃
Sampling mode	sample gas pass-in
Sample gas flow	300 ~ 500ml/min
Background gas	nitrogen and oxygen mixed gas
Appearance Size	80mm×160mm×142mm(H×W×D)
Install Hole Cut	75mm×151mm(H×W)
Serving life	＞20000 hours (under normal use)
Gas cycle port	Φ6 plastic pipe inlet and outlet
Install mode	frame mount or retaining clap carried by the oxygen senso
