Product Details

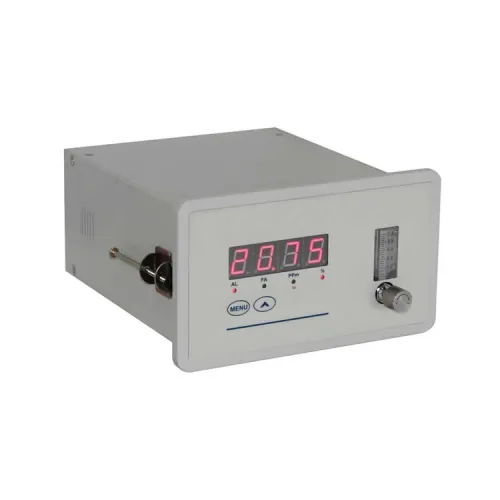

Purity oxygen analyzer uses an imported limiting current sensor with a rapid response speed, high accuracy and long calibration cycle for features. The frame mount installation mode makes it simple and convenient to install.
Purity oxygen analyzer main features:
1.No reference gas is needed and analyzer will not be influenced by oxygen purity in atmosphere;
2.With the functions of compensation and sensor protection built in, the analyzer can be on power under 99.99% occasion without affecting the sensor’s serving life.
3.With the function of temperature compensation, the amount of sample gas flow wouldn’t bring any error to the sensor’s measured results;
4.Altitude measurement module can be expanded to avoid the influence from atmospheric pressure change on the measured accuracy;
5.The measured accuracy of the whole range can be met by a random point calibrated, making the operation simple and convenient.

Purity oxygen analyzer technical parameters:

Test principle	ion current (liming current )
Display mode	4 bits LED display
Test range	10.00% ~ 99.99% O₂
Test range	0.01%
Accuracy	≤±1%FS
Repeatability	≤±1%
Response time	T₉₀≤30S
Analog output	4~20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm) 0~5V.DC(non-isolated output, loaded resistance higher than 10k Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication port	RS232(default) or RS485
Power supply	AC85 ~ 264V 50/60Hz
Sampling mode	sample gas pass-in
Sample gas temperature	-10 ~ +50℃
Sample gas flow	300 ~ 600ml/min
Sample gas pressure	0.05Mpa≤entrance displayed pressure≤0.35Mpa，steady pressure environment
Background gas	N₂and inactive gas
Appearance Size	110mm×190mm×235mm(H×W×D)
Install Hole Cut	90mm×170mm (H×W)
Serving life	type C＞5 years, type D＞3 years(under normal use)
Gas circuit port	Φ6 plastic pipe junction (sensor built-in{)
Install mode	frame mount
