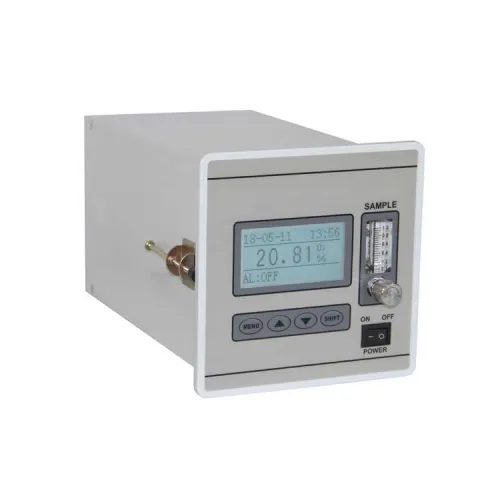

Online trace oxygen analyzer

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Online trace oxygen analyzer can work in the air for a long period without damaging the serving life. Built-in function of temperature compensation could reduce the influence from the changes of environment temperature on the measured accuracy. The new-type longevous zirconia detector is with no power on no consumption, high accuracy, a rapid response speed and high sensitivity for features, etc.
Online trace oxygen analyzer main features:
1. The response speed is rapid and the lowest measurable unit is 0.1ppm;
2. The function of storing data automatically allows the users to look through the historic data freely;
3. Adopting a display mode of big screen sketch point makes showing the parameters like oxygen concentration, date, time simultaneously possible;
4. Upper and lower alarm limits can be set freely among the whole range;
5. With standard RS232（default）or RS485 communication port, the analyzer can communicate with the computer bidirectionally(optional).

Online trace oxygen analyzer technical parameters:

Test principle	zirconium dioxide
Display mode	128×64 matrix dot LCD
Test range	0 ~ 10/100/1000ppm,1.00%,25.00% O₂
Resolution	0.1ppm
Accuracy	0~1000ppm /1.00%/10.00% /25.00% ≤±1% FS 0~100ppm ≤±2% FS 0~10ppm ≤±5%FS
Repeatability	≤±1%
Response time	T₉₀≤30S
Analog output	4~20mA.DC (non-isolated output, loaded resistance lower than 500 Ohm) 0~10V.DC(non-isolated output, loaded resistance higher than 10k Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication port	RS232(default) or RS485
Power supply	AC85~ 264V 50/60Hz
Sample gas temperature	-10 ~ +50℃
Sampling mode	Sample gas pass-in
Sample gas flow	400 ~ 600ml/min
Sample gas pressure	0.05Mpa≤entrance displayed pressure≤0.35Mpa, steady pressure environment
Background gas	N2 and inactive gas
Appearance Size	155mm×155mm×290mm（H×W×D）
Install Hole Cut	135mm×135mm（H×W）
Serving life	＞4 years(under normal use)
Gas circuit port	NPT 1/8 internal thread
Install mode	frame mount
