1200c Compact Magnet Driven Sliding Tube Furnace for Two Dimension Material

Basic InfoModel NO.: HS-OTF-1200X-S-DVDStructure: DesktopCertification: CE, TUVType: Heating TypeMax.Heating Rate: =

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Product Description

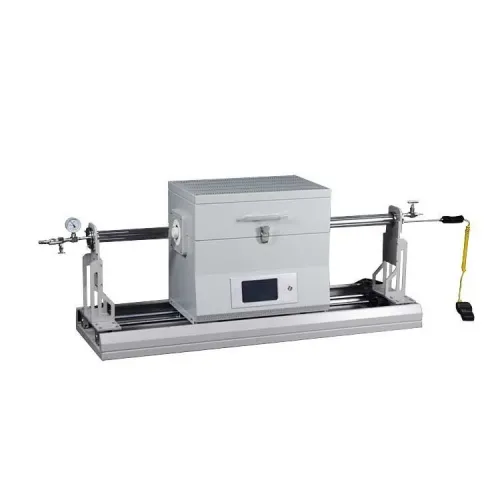

1200℃ Compact Magnet Driven Sliding Tube Furnace for DVD & RTP / atmosphere tube furnace
This is a compact magnet driven sliding 2" tube furnace with a max. working temperature of 1200°C, which is designed for direct vaporizing deposition (DVD) or rapid thermal processing (RTP) under various atmosphere for 2D material growth.

Specifications

Furnace Feature	One high thermal conductivity AlN flat sample holder (2"Lx1"W) is fixed on K type sample, andthe thermal couple with the sample holder can be moved inside quartz tube driven by a magnet manually to find desirable temperature position inside tube for evaporation or deposition. One NIST certified precision temperature monitor is connected to thermal couple and sample holder via a feedthrough on the vacuum flange. One magnet is embedded inside thermal block, and another magnet is placed outside tube. move the outside magnet can move the sample holder with thermal couple inside tube in or out 30 segment programmable temperature controller is built in furnace to set up max. working temperature up to 1200oC at center of furnace One small quartz crucible is included , which can be used to contain evaporation material or please wafer on top for deposition based on your application.
Furnace Power	110VAC or 208 - 240 VAC, 50/60Hz (Please confirm voltage when place order ) 1.5 KW
Max. Temperature	1200°C (<1 hour)<>
Continuous Temperature	1100°C ( continuous)
Max. Heating Rate	<= 20 °c>
Heating Zone	Heating Zone Length: 8" (200mm), single zone. The following picture shows the temp. distribution across the heating zone, please click to enlarge. Constant Temp. Zone: 2.3" (60mm) (+/-1°C) @ 1000 °C You shall measure furnace temperature profile for your own application before making film growth.
Temperature Controller	PID automatic control via solid state relay with 30 steps programmable Built in Over Temperature and Thermocouple Failure Protection Optional: The furnace may be operated by PC with installing a control module.
Temperature Accuracy	+/- 1°C
Heating Elements	Fe-Cr-Al Alloy doped by Mo
Tube Size	2" quartz tube (50mm O.D x 44mm I.D x 800mm L) Two fibrous ceramic tube blocks are included for blocking heat radiation from tube chamber. (Ceramic blocks must be fully inserted into the furnace chamber before heating) One small quartz boats is included for placing sample or evaporation materials.
Vacuum Flanges	2" default flange with 1/4'' Bard fittings, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum port
Vacuum Level	10-2torr (by mechanical pump)
Dimensions	With lid close: 1055mm(L) × 300mm(W) × 400mm(H) With lid open: 1055mm(L) × 300mm(W) × 560mm(H)
Net Weight	22 Kg
Shipping Package Size	48''(L) x 24''(W) x 28''(H)
Shipping Weight	120 lbs
Warranty	One year limited warranty
Compliance	CE Certified
