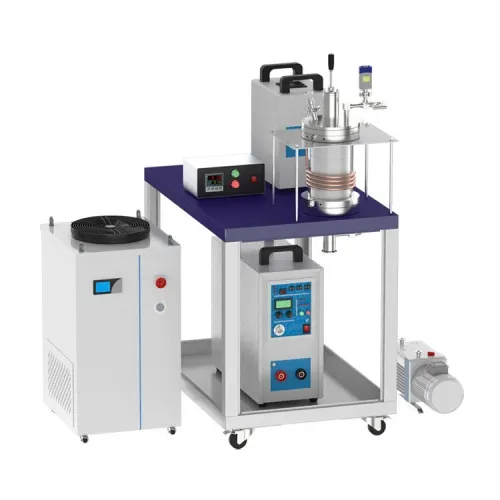

| Induction Heater |
●Working Voltage: 220V AC, 50/ 60Hz, Three Phases ( 380VAC, 3phase available upon request )
●Working Current: 5~52 Amps (60A breaker required)
●Max. Input Power: 15 KW
●Output Frequency: 30 - 80 kHz
●Duty Cycle: 80%
●Induction Coil: 220mm(ID) x 65mm(H)
●Air Cooling: Rear Fan
●Protection: Automatic water pressure, over-temperature, and overpower protection
●Refractory Assembling: Complete refractory assembling made of alumina, including bottom crucible support, crucible holder, and cover |
| Temp. Controller & Thermocouple |
●Precision digital temperature controller with Automatic PID tuning
●30 segments programmable for controlling heating and cooling rate as well as dwell time.
●Overheating & thermocouple failure protection.
●+/- 3℃temperature accuracy.
●Thermocouple: C type ( 1/4"x10"L )
●Continuous Working Temp. Range: 1000℃~1900℃
●Max. Working Temperature: 2000℃ (for less than an hour)
●Max. Heating Rate:
●4℃/second (1000℃-1200℃)
●3℃/second (1200℃~1500℃)
●1℃~2℃/second (1500℃~2000℃) |
| Graphite Crucible & Refractory liners |
●High Purity Graphite Crucible: 114 mm O.D x 100 mm ID x 142mm Height is included for induction heating. Max. Loading Capacity: Up to 1/2 of the total volume of the graphite crucible.
●Max. melting capability: 4 kg for Iron (tested)
●Three-layer special design refractory liner can withstand temperature up to 2200C.
●Note: Graphite crucible is consumable, please order spare at CYKY |
Sealing Flanges
& Quartz Chamber |
●Two-end Open Quartz Tube is included with dimensions of 216 mm(OD) x 208 mm(ID) x 500mm(L),
●Top Flange: Stainless steel hinged type flange with 1/4'' thermocouple feedthrough, needle valve, and the barb fitting.
●Bottom Flange: Stainless steel flange with a needle valve and KF-25 vacuum port.
●KF25 right angle valve& clamps and 1000mm long SS bellows are included for connecting to vacuum pump |
| Pressure Sensor |
●Anti-Corrosive Capacitance Diaphragm Gauge (Gas Independent), measurement range up to 3.8x10E-5 torr
●One 24V,1A DC power adapter is included and ready to use. Input voltage for the adapter is 110~240V Single Phase. |
| Flow Meter |
●Compact Direct Read Flow Meter, 100-1000 cc/min. with 1/4NPT
●Accuracy: 4%
●Optional: Precision MFC is available upon request at the extra cost |
| Water Chiller |
●Temperature range: 5 - 30°C
●Water Flow Rate: 58 L/m
●Note: It is recommended to use specific coolant to get the best performance. |
| Vacuum Pump |
●One 156 L/m Rotary Vane Vacuum Pump is included
●Rate: 156 L/min up to 10e-2 torr vacuum.
●Max. Power Consumption: 0.4KW / 0.37KW
●If you choose high-speed turbo-pump, vacuum level can reach 10E-5 torr |
| Heavy Duty Mobile Cart |
●Structure: Steel Frame Mobile Cart
●600mm(L) x 800mm(W) surface for placing Induction Heater & Quartz Tube with Flange |
| Protective Sheild |
●For Non-UL Certified version, a protective shield made of phenolic sheets will be provided.
●For UL Certified version, a clear protective shield made of polycarbonate will be provided.
●The protective shield is to be placed around the quartz tube to contain the shooting glass shards if accidents were to happen |
| Warranty |
●One year limited warranty with lifetime support
●Consumable parts such as processing tube, thermocouple, refractory liners, o-rings and heating coil are not covered by the warranty |
| Net Weight |
350 lbs |
