Vacuum induction melting furnace HS-IM400-L

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

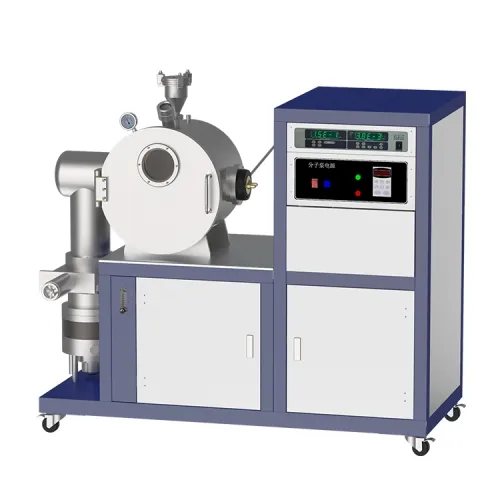

This product is a vacuum induction furnace with induction heating, and the melting temperature of the equipment can reach 2000℃. The induction furnace adopts a stainless steel water-cooled chamber and is equipped with a quartz observation window to observe the sample melting condition. It is suitable for sample melting and heat treatment, phase diagram research. The equipment adopts high-quality high-frequency induction power supply and supports customized maximum 60KW high-frequency induction power supply. The equipment is equipped with a high-vacuum molecular pump set, which can effectively improve the vacuum degree of the substrate and thus improve the quality of the melting. The equipment is also equipped with a lifting platform and a flip handle to facilitate the operator to carry out the casting and sampling operations after melting.
Vacuum induction melting furnace feature:
The equipment is comprehensive in function, fast in melting, easy to use, energy-saving and environmentally friendly, and is very suitable for laboratory research on metal samples.

Vacuum induction melting furnace specificaitons:

HS-IM400-L Vacuum induction melting furnace
Induction power	Frequency	High frequency	Power	Customizable, maximum 60KW
Vacuum chamber	Chamber material	stainless steel	Cooling system	Water-cooled electrode, water-cooled chamber, water-cooled mold
	Chamber size	φ400mm× 400mm	Watch Window	Main Watch Window φ120mm, upper Watch Window φ45mm
	Accessories	Infrared temperature measurement window, Vacuum funnel	Lifting platform	0~40mm lifting range
	Water cooled interface	Φ8mm quick plug interface
Vacuum system	Model	HS-GZK103-A	Pumping interface	CF160
	Molecular pump	HS-600	Exhaust interface	KF16
	Backing pump	Rotary vane pump	Vacuum measurement	Compound vacuum gauge
	Ultimate vacuum	1.0E-5Pa	Power supply	AC 220V 50/60Hz
	Pumping rate	Molecular pump: 600L/S rotary vane pump: 1.1L/S Comprehensive pumping performance: The vacuum can reach 1.0E-3Pa in 20 minutes.
Crucible	Graphite crucible	Max Φ60mm × 80mm	Alumina crucible	Max Φ120mm× 90mm
Others	Supply voltage	AC220V 50Hz or three-phase 380V	Overall size	1550mm×700mm×1400mm
Others	Total power	Refer to induction power supply	Total Weight	900kg
