Compact DC Magnetron Sputtering Coater and Gold Target for Noble Metal Coating

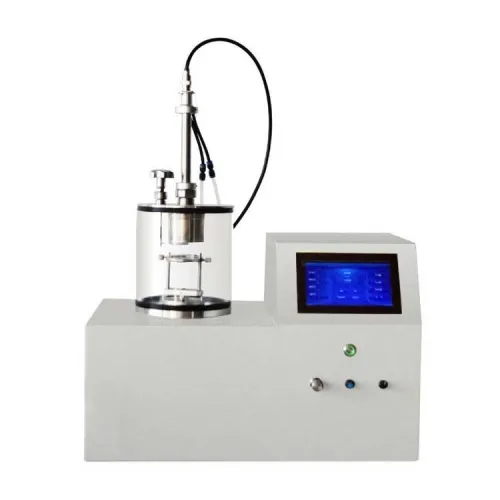

This equipment is a Desktop Magnetron Plasma Sputtering Coater with a 2" target head, height adjustable sample holder. Especially suit for coating conductive gold film for SEM sample. It is a compact plasma sputtering coater designed for metallic coatings, such as gold, platinum, and silver. One 2"

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Feature	Specially Designed for coating conductive gold film for SEM sample.Compact plasma sputtering coater designed for metallic coatings, such as gold, platinum, and silver.One 2" gold (4N) target is included.
Input Voltage	220 VAC 50/60Hz, 200W< 1000 W (including vacuum pump power)
Output Voltage	500 VDC
Sputtering current	0 - 50 mA (max.) adjustable sputtering currentDigital current meter (mA)Over-current protection
Sputtering time	1 -120 seconds adjustable
Specimen Chamber	Quartz glass tube, 165 mm OD. x 152 mm ID x 145 mm
Specimen Stage	2" diameterheight adjustable, 30 - 80 mm from the sample to the target
Sputtering Head	2" magnetron sputtering head.One manually operated shutter for target protection.
Vacuum Pressure	Digital vacuum pressure meter (Pa)KF25 vacuum pump connectorUltimate vacuum pressure 1 Pa by the mechanical pump. The Pump is not included
Vacuum pump (optional)	The double stage rotary vane pump is recommended. Optional: you may use a turbo pump to achieve 1.0E-5 Torr vacuum by a turbo pump
Input gas	One 1/4 Swagelok type tube fitting is installed for connecting the inert gas cylinder.One metering valve is in the front panel for adjusting the input gas.
Target	One 50mm Dia. x 0.12mm gold target is included. 4N purity gold foil: 50 mm(2 inch) Dia. x 0.12 mm Optional Targets are available Au target (50 mm Dia. x 0.12 mm, 4N purity) Pt target (50 mm Dia. x 0.12 mm, 4N purity) Ag target (50 mm Dia. x 0.5 mm, 4N purity) This model is suitable for coating Gold, Sliver, Platinium. And it is not suitable for coating light metallic material such as Al, Mg, Zn, or Carbon target due to low energy
Product Dimension and weight	L 460 mm × W 330 mm × H 520 mm20kg
Warranty	One year limited with lifetime support
