Multi-Function Coater: Plasma Sputtering+Evaporating+Carbon Coating with Turbo Hi-Vacuum System

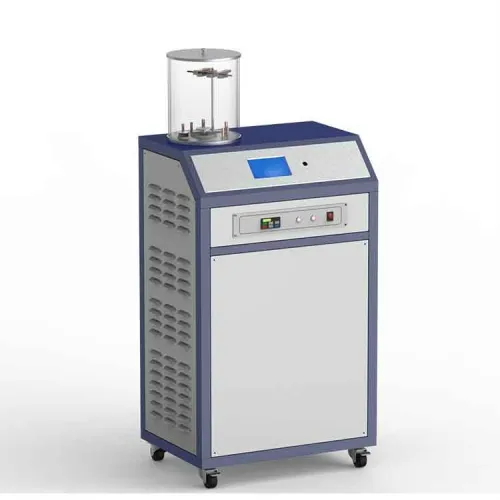

This machine is a floor-stand Multi-Function Film Coater, which integrates thermal evaporating, carbon coating and plasma sputtering coating into one machine and it can provide the coating for almost every material, including metallic, semiconductive and insulating materials. It is an excellent and

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Input Voltage	220VAC, 10A, 50/60 Hz, single phase ( < 2500W)
Input Power	< 2000W (including pump)
Output Voltage (DC)	AC10V upto 100A Max. for thermal evaporationDC 3KV, 10mA for Plasma sputtering
Vacuum Chamber	Bell Jar made of pyrex glass250mm Dia. x 340mm HeightTwo inner glass tubes are included for radiation blockingOne is 88 mm ID x 140mm H for thermal evaporating The other one is 88 mm ID x 57mm H for plasma sputteringOne stainless steel mesh enclosure is included for blocking light radiation during thermal evaporation
Turbo Vacuum Pump	High-speed turbo vacuum pump system is installed bottom of the coaterVacuum speed: 600L/SVacuum level: 10e-6 torrEnvironmental working temperature: < 32°C
Coating Source Assembling	Three sets of coating source assembling are included. (1) Dual heating station for thermal evaporating ( Pic lower left)Can evaporate two kinds of materials in same time.Max. temperature can reach 1800ºC to evaporate almost all kinds of materials. Tungsten wire resistance heaters are included for immediate use.Spare Tungsten heater is available (2) One set for carbon coating Assembling two carbon rods are included for immediate use (3) One set for DC plasma sputteringOne gold target ( 38mm Dia x 0.12 mm thickness) is included
Control Pannel	Control Panel allows you choose coating method and adjust sputtering current and evaporation power
Gas atmosphere	One needle valve installed to allow Ar gas flow to achieve better plasma coating
Overall Dimensions	L800mm× W560mm× H1340mm
Net Weight	150 kg
Shipping Weight & Dimensions	400 lbs; 52"x40"x54"
Warranty & Certificate	One years limited warranty with lifetime support CE certified
