Precision Electrode Disc Cutter with Cutting Die Dia. 3-24mm

Basic InfoModel NO.: HS-MSK-T-10Certification: CE, TUVSuitable for: Plastic, Alloy, Stainless SteelStructure: Cr Plated SteelCutting Die Material: Stainless SteelTransport Package: Wooden BoxOrigin: Zhengzhou, ChinaCondition: NewAutomation: ManualCutting Die: CustomizedWarranty

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Basic Info
Model NO.: HS-MSK-T-10
Certification: CE, TUV
Suitable for: Plastic, Alloy, Stainless Steel
Structure: Cr Plated Steel
Cutting Die Material: Stainless Steel
Transport Package: Wooden Box
Origin: Zhengzhou, China
Condition: New
Automation: Manual
Cutting Die: Customized
Warranty: 12 Months
Trademark: CY
Specification: 3-24mm die
HS Code: 85141090

Product Description

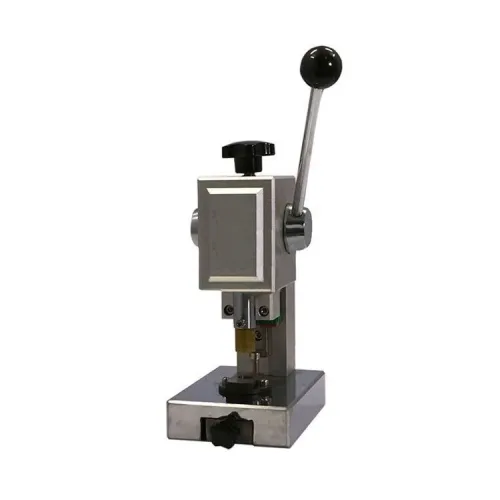

Precision Disc Cutter with Standard 16, 19, 20 Dia. Cutting Die & 3 - 24mm Optional - MSK-T-10
Introduction
MSK-T-10 is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm. This tool is manually operated and is designed for cutting round discs from thin metal sheet/foil (< 0.5 mm) or separator film (<30um). The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researches as well as TEM sample preparation.
Specification

Structure   Major structural material: Cr Plated Steel
Cutting Die   16, 19, and 20mm precision dies are included in standard package
Optional 3 - 24mm customized dies are available upon request
Product Dimensions   209mm(L) x 120mm(W) x 394mm(H)
Compact size which can be put into glovebox through air lock chamber
Warranty   One year limited manufacture warranty with lifetime support
Rusting and damage due to improper storage condition or maintenance is not covered by warranty
