200c Automatic Mounting Press for Sem & Metallographic Samples

Basic InfoModel NO.: HS-EQ-HXQ-50Structure: DesktopCertification: CE, TUVType: Measurement TypeHeating and Dwell Time: 1-999 MinuteControl Panel: Touch ScreenTrademark: HSSpecification: dia. 25HS Code: 85141090Customized: CustomizedMaterial: AlloyApplication: School, LabTem

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Basic Info
Model NO.: HS-EQ-HXQ-50
Structure: Desktop
Certification: CE, TUV
Type: Measurement Type
Heating and Dwell Time: 1-999 Minute
Control Panel: Touch Screen
Trademark: HS
Specification: dia. 25
HS Code: 85141090
Customized: Customized
Material: Alloy
Application: School, Lab
Temperature: 100-200c
Loading: 200-2306kg
Warranty: One Year
Transport Package: Wooden Box
Origin: Zhengzhou, China

Product Description

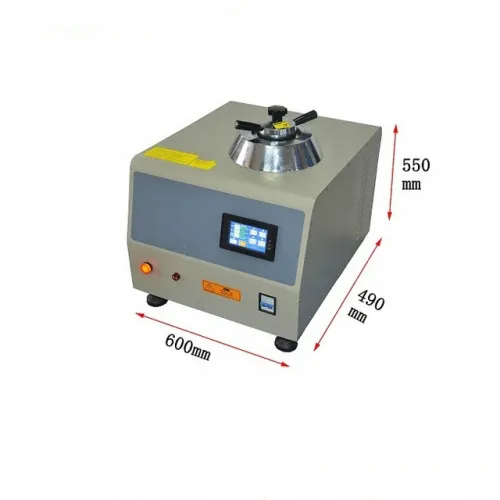

Automatic Mounting Press upto 200ºC and 2.3 T for SEM & Metallographic Samples - EQ-HXQ-50
Introduction of automatic mounting press
HXQ-50 is an automatic mounting press designed to encapsulate samples into round disc up to 200ºC and
2 metric ton for 50mm for SEM or metallographic sample. 3 sets mounting dies are included with 25 mm, 30 mm
and 50 mm. Touchscreen panel make operation at ease.

Technical parameter of automatic mounting press

Power	Standard AC 208-240V 50/60Hz 1200W ( 10A air breaker required)
Compression Die	Four sets of mounting die are included with diameter of 25, 30, 40, and 50 m
Control Panel	5" Touch Screen digital control for setting parameters: Temperature:100 - 200oC Heating and dwell time: 1 - 999 minute Loading: 200 - 2306 kg ( via hydraulic cylindrical ) Pressure: depended on mounting die diameter Max. 470 Bar for 25 mm die Max: 326 Bar for 30 mm die Max. 183 bar for 40 mm die Max. 118 Bar for 50 mm die
Compliance	CE
Machine Net weight	200 Lb.
Shipping Weight & Dimensions	250 lbs 40" x 30" x 28"
Warranty	One-year limited warranty with lifetime support
