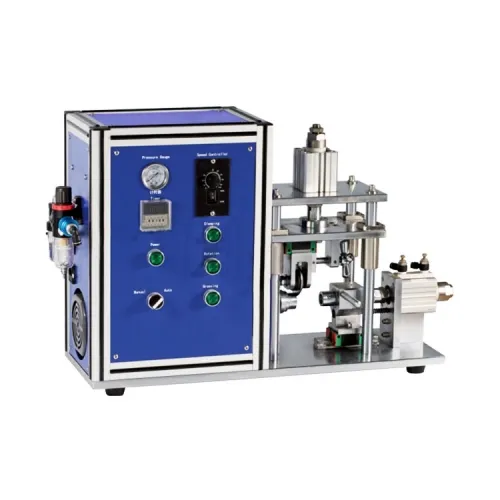

Semi-auto grooving machine for cylindrical battery

Product introductionHS-GC650 Semi-auto grooving machine is suitable for uniform automatic roll groove of cylindrical steel cases (or capacitor aluminum cases) equipped with battery cells. It is standard equipped with 18650. It can also replace some tooling fixture to process v

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Product introduction

HS-GC650 Semi-auto grooving machine is suitable for uniform automatic roll groove of cylindrical steel cases (or capacitor aluminum cases) equipped with battery cells. It is standard equipped with 18650. It can also replace some tooling fixture to process various cylindrical cell rolling groove.

Main features

1. Adjustable roll groove size, high precision and stable size.

2. It can process various grooves for cylindrical batteries.

3. Small size, safe and reliable, delicate and beautiful.

Technical parameters

1. Grooving depth: 1.2 ~ 2.0mm (adjustable)

2. Grooving width: 1.1 ~ 1.5mm (according to the thickness of the hob)

3. Grooving accuracy: ± 0.1mm

4. Grooving blade durability:> 1 million times

5. Productivity: semi-automatic 400 EA / H

6. Voltage: AC220V / 50Hz

7. Power: 140W

8. Compressed air: 0.5MPa ～ 0.7MPa

9. Product size: 600x 450x 350mm

10. Net weight: 35kg
