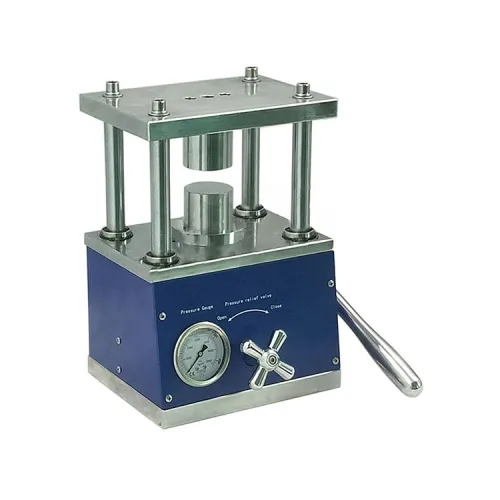

Manual powder hydraulic press

1. Specially designed hydraulic structure, operation effort saving;

2. Built-in pressure gauge, you can observe and accurately control the pressure;

3. Precise linear guidance and die ensure uniform material pressing;

4. Equipped with safety oil valve, which can adjust the pressure as required, and at the same time, the upper limit of the pressure can be set to prevent the damage caused by excessive pressure caused by misoperation;

5. Sturdy steel structure design, stable and safe to use;

6. Small size, quick and convenient operation, can be operated in the glove box;

7. Beautiful appearance and easy maintenance;

1. Crimping die: diameter Φ68 mm (can be customized)

2. Crimping stroke: 30mm

3. Made from Japan imported mold material;

4. Structural material: alloy aluminum and high-strength chrome steel, the surface is treated with environmental protection electroplating;

5. Dimensions: 232mm x 165mm x 320mm;

6. Weight: 25kg;
